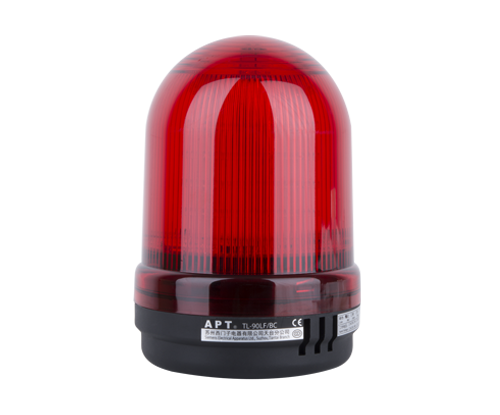

APT/西門子TL-90警示燈介紹
TL-90系列警示燈是本公司自主研發的產品，該系列產品采用集成式結構進行設計，結構緊湊、安裝方便。采用進口LED芯片、大功率的蜂鳴器，可以在工作空間較大的場合有效傳遞信號。燈罩采用耐熱、抗震、防油污的PC材料制成，整體使用壽命優于同類產品。
APT/西門子TL-90警示燈特點
1. 聲光一體
2. 光源：LED
3. 發光形式：常亮、閃亮、轉亮
4. 發聲形式：間斷、連續、警笛
5. 蜂鳴器音量：＞90dB，警笛音量：＞110dB（距離聲源水平方向10cm處）
6.燈罩由耐熱抗震的聚碳酸酯樹脂制成
APT/西門子TL-90警示燈參數
額定絕緣電壓：690V
工頻耐壓：AC1890V，50Hz，5S
防護等級：IP65（單燈或警笛聲光一體），IP40（蜂鳴器發聲）
工作溫度：-25℃～+55℃
儲存溫度：-25℃～+70℃
安裝海拔高度 ≤2000m
APT/西門子TL-90警示燈型號一覽
|
型號
|
型號 |
型號 |
型號 |
型號 |
|
TL-90LS/BC/r23/D |
TL-90LS/BI/r31/S |
TL-90LS/BC/g31/S |
TL-90LS/BI/g31/D |
TL-90LF/BI/y23/S-X |
|
TL-90LF/BC/r23D |
TL-90LF/y23/D |
TL-90LF/BC/g31/S |
TL-90LL/w23/D |
TL-90LS/BC/b23/D |
|
TL-90LF/BI/r23/D |
TL-90LS/BI/g23/D |
TL-90LS/BI/y31/D |
TL-90LF/BC/r31/D-X |
TL-90LL/r24/D |
|
TL-90LF/BI/r31/D |
TL-90LS/BC/y23/D |
TL-90LS/BW/y31/D |
TL-90LF/g31/S |
TL-90LF/BW/y26/D |
|
TL-90LF/r23/D |
TL-90LF/r23/S |
TL-90LF/BI/y31/D |
TL-90LF/BI/r23/S-X |
TL-90LL/BC/b23/D |
|
TL-90LF/r31/D |
TL-90LS/r23/S |
TL-90LS/BI/y23/D |
TL-90LF/BW/r31/S-X |
TL-90LF/b23/D |
|
TL-90LF/y31/D |
TL-90LS/y23/S |
TL-90LL/BI/r31/D |
TL-90LS/BI/r31/D-X |
TL-90LF/BC/y31/D-X |
|
TL-90LL/r23/D |
TL-90LS/BI/g31/S |
TL-90LF/BW/y31/S-X |
TL-90LS/BI/g26/D |
TL-90LF/r23/S-X |
|
TL-90LL/r31/D |
TL-90LL/BW/y23/D |
TL-90LS/BW/y31/D-X |
TL-90LS/BC/r23/D-X |
TL-90LS/g23/S-X |
|
TL-90LS/b31/D |
TL-90LL/y23/S |
TL-90LS/BW/g31/S-X |
TL-90LS/r31/D-X |
TL-90LF/g23/D |
|
TL-90LS/BI/r31/D |
TL-90LF/BW/w23/D |
TL-90LL/r23/D-X |
TL-90LS/BW/r31/D-X |
TL-90LF/BI/r23/D-X |
|
TL-90LS/BI/y31/S |
TL-90LF/BC/y23/S |
TL-90LL/r26/D-X |
TL-90LS/BC/y31S |
TL-90LS/BI/g23/S |
|
TL-90LS/BWr31/S |
TL-90LL/BW/r23/S |
TL-90LS/BC/r31/S-X |
TL-90LL/BC/r23/D-X |
TL-90LF/BW/y31/D-X |
|
TL-90LS/r23/D |
TL-90LL/BI/g23/D |
TL-90LS/r23/D-X |
TL-90LS/BC/g31/D-X |
TL-90LS/BI/r23/S-X |
|
TL-90LS/r31/D |
TL-90LL/BC/g31/S |
TL-90LS/BC/y31/S-X |
TL-90LF/BW/r23/D-X |
TL-90LS/BC/w31/D-X |
|
TL-90LS/r31/S |
TL-90LL/w23/S |
TL-90LS/b23/D |
TL-90LF/BI/r31/S-X |
TL-90LL/BI/r31/D-X |
|
TL-90LS/BW/r31/D |
TL-90LL/BC/r26/D |
TL-90LS/BC/y31/D-X |
TL-90LF/BW/y23/D-X |
TL-90LS/y31/D-X |
|
TL-90LS/BI/r23/D |
TL-90LS/BW/g23/D |
TL-90LL/BW/r23/D-X |
TL-90LF/BI/g23/S-X |
TL-90LL/g31/S-X |
|
TL-90LL/BC/g23/S |
TL-90LL/BI/r31/S |
TL-90LL/w31/S |
TL-90LF/BI/y23/D-X |
TL-90LL/BW/g23/D-X |
|
TL-90LS/BC/r26/D |
TL-90LF/y23/S |
TL-90LS/BC/r31/D-X |
TL-90LF/BW/y31/D |
TL-90LL/BC/r23/S-X |
|
TL-90LS/BW/g31/D |
TL-90LL/BC/y31/D |
TL-90LF/BC/g26/D |
TL-90LF/BW/y23/S-X |
TL-90LF/r26/S-X |
|
TL-90LF/BW/b31/D |
TL-90LF/BC/r26/D |
TL-90LS/BW/y23/D-X |
TL-90LS/BC/g23/D |
TL-90LF/r31/S-X |
|
TL-90LS/y23/D |
TL-90LS/BW/r26/S |
TL-90LF/BC/r23/S-X |
TL-90LS/BW/b31/D |
TL-90LF/BC/y23/S-X |
|
TL-90LS/y31/D |
TL-90LL/BW/r31/S |
TL-90LF/BC/r26/S-X |
TL-90LS/BW/r23/D-X |
TL-90LS/g23/D-X |
|
TL-90LL/BC/r31/D |
TL-90LL/BC/g23/D |
TL-90LS/BW/r31/S-X |
TL-90LS/BC/y23/D-X |
TL-90LF/g26/D |
|
TL-90LF/r26/D |
TL-90LS/BW/y31/S |
TL-90LS/BI/y23/D-X |
TL-90LF/BC/r31/S-X |
TL-90LS/r23/S-X |
|
TL-90LF/BW/r23/D |
TL-90LF/BI/g31/S |
TL-90LS/BI/w31/D |
TL-90LF/BI/g23/D |
TL-90LS/y31/S-X |
|
TL-90LF/BC/r23/S |
TL-90LF/BC/b23/D |
TL-90LF/BC/r23/D-X |
TL-90LL/BW/r23/S-X |
TL-90LL/BI/r23/S-X |
|
TL-90LS/BW/r23/S |
TL-90LF/BW/g31/S |
TL-90LF/BC/g31/D-X |
TL-90LF/BI/g31/D |
TL-90LS/BI/b23/D |
|
TL-90LF/BW/r26/D |
TL-90LL/BI/y31/S |
TL-90LS/BC/y26/D |
TL-90LS/BC/g31/D |
TL-90LL/BC/g23/D-X |
|
TL-90LS/BW/r31/S |
TL-90LS/BC/r26/S |
TL-90LS/BI/r31/S-X |
TL-90LS/BC/r31D-X |
TL-90LL/BC/w23/D-X |
|
TL-90LS/BC/r23/S |
TL-90LS/BI/w23/D |
TL-90LS/BI/y31/D-X |
TL-90LS/g31/S |
TL-90LF/BI/b31/S |
|
TL-90LF/BW/y31/S |
TL-90LF/BW/y23/S |
TL-90LS/BI/b31/D-X |
TL-90LL/BI/y31/D |
TL-90LF/BI/g26/D-X |
|
TL-90LL/b31/S |
TL-90LL/b23/S |
TL-90LL/BI/g23/S |
TL-90LF/BI/r23D-X |
TL-90LF/y23/S-X |
|
TL-90LS/BI/r23/S |
TL-90LL/BC/g31/D |
TL-90LF/BC/y31/S-X |
TL-90LF/r31/D-X |
TL-90LF/BI/g31/S-X |
|
TL-90LS/BI/y23/S |
TL-90LF/BI/r26/S |
TL-90LF/BC/g23/S |
TL-90LF/r23/D-X |
TL-90LL/BC/b23/D-X |
|
TL-90LS/BI/b31/D |
TL-90LL/g23/S |
TL-90LL/b23/D |
TL-90LF/g23/S |
TL-90LL/BI/b23/D-X |
|
TL-90LL/BI/r23/S |
TL-90LL/BC/y23/S |
TL-90LL/BC/r31/D-X |
TL-90LF/BI/r31/D-X |
TL-90LL/y23/D-X |
|
TL-90LL/BC/r23/S |
TL-90LS/BI/r24/D |
TL-90LL/r31/D-X |
TL-90LF/BW/g31/D |
TL-90LL/BW/g23/S |
|
TL-90LF/b31/D |
TL-90LL/g24/S |
TL-90LS/BI/r23/D-X |
TL-90LF/BI/y31/S |
TL-90LS/BI/y23/S-X |
|
TL-90LL/BC/r23/D |
TL-90LL/y31/S |
TL-90LL/BW/y31/D |
TL-90LS/BI/r26/S |
TL-90LF/BI/g23/D-X |
|
TL-90LS/BC/y23/S |
TL-90LF/BI/r26/D |
TL-90LF/y23/D-X |
TL-90LL/BW/g25/D |
TL-90LS/BI/g31/S-X |
|
TL-90LL/g31/D |
TL-90LS/g23/D |
TL-90LF/w23/S |
TL-90LF/BW/g23/D-X |
TL-90LL/BW/r31/D-X |
|
TL-90LF/BI/y23/D |
TL-90LF/BW/b23/D |
TL-90LS/BI/r26/D |
TL-90LL/BI/g31/D |
TL-90LF/BI/b23/S |
|
TL-90LL/BC/y23/D |
TL-90LL/r24/S |
TL-90LF/b23/S |
TL-90LS/y23/D-X |
TL-90LS/g31/D-X |
|
TL-90LL/g23/D |
TL-90LF/BI/b31/D |
TL-90LF/y31/S |
TL-90LL/BI/y23/D-X |
TL-90LF/BC/r24/D-X |
|
TL-90LL/y26/D |
TL-90LL/BI/y23/D |
TL-90LF/BW/b26/D |
TL-90LL/BW/y31/S-X |
TL-90LS/BI/g31/D-X |
|
TL-90LL/r26/D |
TL-90LF/BC/b26/D |
TL-90LF/BI/y31/D-X |
TL-90LL/w31/D |
TL-90LL/BC/g23/S-X |
|
TL-90LL/g26/D |
TL-90LF/BC/r26/S |
TL-90LL/BW/g23/D |
TL-90LF/BC/y23/D-X |
TL-90LF/BW/g26/D |
|
TL-90LF/BC/g31/D |
TL-90LL/g31/S |
TL-90LF/BW/r23/S-X |
TL-90LF/BW/r26/S-X |
TL-90LL/BW/y23/D-X |
|
TL-90LL/r23/S |
TL-90LS/BI/y26/D |
TL-90LF/w23/D |
TL-90LF/BW/r22/D |
TL-90LF/BW/r25/D |
|
TL-90LF/BC/y31/D |
TL-90LS/BW/r26/D |
TL-90LF/BI/b23/D |
TL-90LL/g23/S-X |
TL-90LF/BI/g23/S |
|
TL-90LF/g31/D |
TL-90LS/BW/y23/S |
TL-90LS/BW/w31/S |
TL-90LS/r26/D-X |
TL-90LF/BW/r25/S |
|
TL-90LS/BC/y31/D |
TL-90LF/BI/r23/S |
TL-90LL/b31/D |
TL-90LS/y26/D-X |
TL-90LL/BC/b31/D |
|
TL-90LS/BW/r23/D |
TL-90LF/BC/y31S |
TL-90LF/g26/D-X |
TL-90LL/BW/b23/D |
TL-90LL/r26/S |
|
TL-90LF/BW/r23/S |
TL-90LS/BC/b31/D |
TL-90LS/BW/y23/S-X |
TL-90LF/BI/y26/D |
TL-90LS/BC/g23/S |
|
TL-90LF/BI/r31/S |
TL-90LS/r26/D |
TL-90LL/BC/y23/D-X |
TL-90LS/BW/r23/S-X |
TL-90LS/BW/g23/S-X |
|
TL-90LF/BW/b23S |
TL-90LL/r31/S |
TL-90LF/BW/r26/S |
TL-90LS/BW/y31/S-X |
TL-90LS/BC/g23/D-X |
|
TL-90LF/r31/S |
TL-90LF/BW/y23/D |
TL-90LS/r31/S-X |
TL-90LL/BI/y23/S |
TL-90LS/BW/b23/S |
|
TL-90LS/BC/r31/S |
TL-90LL/BI/r23/D |
TL-90LS/BC/r26/D-X |
TL-90LL/g23/D-X |
TL-90LL/BW/r31/S-X |
|
TL-90LF/BC/b31/D |
TL-90LL/y31/D |
TL-90LS/BC/r23/S-X |
TL-90LF/BC/b31/S |
TL-90LL/BI/r31/S-X |
|
TL-90LF/BW/r31/D |
TL-90LL/BW/r31/D |
TL-90LS/BI/g23/D-X |
TL-90LL/BW/y31/S |
TL-90LL/r31/S-X |
|
TL-90LF/BW/r31/S |
TL-90LS/BW/r24/S |
TL-90LS/y23/S-X |
TL-90LS/BI/r26/D-X |
TL-90LF/BC/r23/D-RS |
|
TL-90LF/BC/r31/S |
TL-90LF/r24/D |
TL-90LS/y26/D |
TL-90LF/y26/D |
TL-90LS/BI/w23/S-X |
|
TL-90LF/BC/y23/D |
TL-90LL/BC/y31/S |
TL-90LF/BW/g23/D |
TL-90LS/w31/S |
TL-90LS/BW/r26/S-X |
|
TL-90LS/BC/r31/D |
TL-90LS/BW/g23/S |
TL-90LL/BI/r23/D-X |
TL-90LS/BI/g23/S-X |
TL-90LF/BC/w26/S-X |
|
TL-90LF/BC/r31D |
TL-90LL/y23/D |
TL-90LL/BI/g23/D-X |
TL-90LL/BC/R31/S-X |
TL-90LL/w31/D-X |
|
TL-90LS/BW/y23/D |
TL-90LS/y31/S |
TL-90LL/y31/D-X |
TL-90LL/BC/r26/S |
TL-90LF/r24/S-X |
|
TL-90LL/BC/r31/S |
TL-90LS/r26/S |
TL-90LL/g31/D-X |
TL-90LL/y23/S-X |
TL-90LS/BC/g23/S-X |
|
TL-90LF/BC/g23/D |
TL-90LL/BW/r23/D |
TL-90LL/BC/w23/D |
TL-90LS/BC/y23/S-X |
TL-90LS/b31/S |
|
TL-90LS/g31/D |
TL-90LF/BI/y23/S |
TL-90LF/BW/r31/D-X |
TL-90LS/BI/y31/S-X |
|
