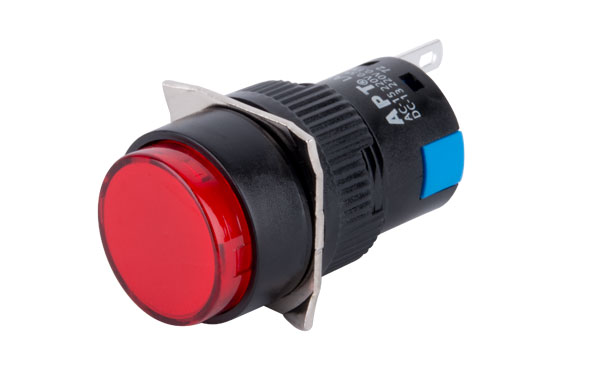

APT/上海二工LA39-E系列按鈕開關參數說明
重要參數：
額定絕緣電壓：AC250V 50Hz
約定發熱電流：5A
電氣壽命：AC-15 10萬次 DC-13 5萬次
額定電流：AC-15 24V/2A、 110V/1A、 220V/0.5A
DC-13 24V/0.7A、 110V/0.2A、 220V/0.1A
安裝孔徑φ 16mm；
紅、黃、綠、藍、白、黑六種顏色；
圓形、方形、矩形頭部；
品種規格齊全：復位鈕、自鎖鈕、帶燈鈕、帶功能符號鈕、旋鈕、鑰匙鈕、蘑菇鈕、緊停鈕等；
采用焊接片的接線方式；
結構緊湊，安裝方便，銀鎳觸點接觸可靠，性能穩定。
額定絕緣電壓：AC250V 50Hz
工頻耐受電壓：AC1500V 50Hz .5s
約定發熱電流：5A
機械壽命：一般鈕100萬次
旋鈕10萬次
鑰匙鈕、緊停鈕5萬次
電氣壽命：AC-15 10萬次 DC-13 5萬次
環境溫度：-25℃～55℃
儲存溫度：-30℃～70℃
動作頻率：1200次/1小時
產品認證：CCC、CE、RoHS
符合標準：IEC 60947 / GB 14048.5
防護等級：IP40
安裝地點的海拔：不超過 2000米
APT/上海二工LA39-E系列按鈕開關型號一覽
|
型號 |
型號 |
型號 |
型號 |
|
LA39-E11/b |
LA39-E11TD/w21 |
LA39-E22DJ/y25 |
LA39-E11D/y28 |
|
LA39-E11/g |
LA39-E11TD/w22 |
LA39-E22DJS33/g23 |
LA39-E22XD/r28 |
|
LA39-E11/g-TH |
LA39-E11TD/w23 |
LA39-E22DJS34/g23 |
LA39-E22TDF/y28 |
|
LA39-E11/k |
LA39-E11TD/y22 |
LA39-E22DJS36/r23 |
LA39-E22DJ/w28 |
|
LA39-E11/k-TH |
LA39-E11TD/y23 |
LA39-E22DS8/y23 |
LA39-E11DF/w28 |
|
LA39-E11/r |
LA39-E11TDF/b23 |
LA39-E22F/g |
LA39-E11DJ/r28 |
|
LA39-E11/r-TH |
LA39-E11TDF/g21 |
LA39-E22F/k |
LA39-E11TDJ/r28 |
|
LA39-E11/w |
LA39-E11TDF/g22 |
LA39-E22F/r |
LA39-E11TD/g28-TH |
|
LA39-E11/y |
LA39-E11TDF/g23 |
LA39-E22F/w |
LA39-E11DJ/b28 |
|
LA39-E11/y-TH |
LA39-E11TDF/r21 |
LA39-E22F/y |
LA39-E11DF/b28 |
|
LA39-E11D/b23 |
LA39-E11TDF/r22 |
LA39-E22J/b |
LA39-E11D/w28 |
|
LA39-E11D/g21 |
LA39-E11TDF/r23 |
LA39-E22J/g |
LA39-E11TDJ/w28 |
|
LA39-E11D/g22 |
LA39-E11TDF/w22 |
LA39-E22J/k |
LA39-E22TDF/r28 |
|
LA39-E11D/g23 |
LA39-E11TDF/w23 |
LA39-E22J/r |
LA39-E22TDF/b28 |
|
LA39-E11D/g25 |
LA39-E11TDF/y21 |
LA39-E22J/w |
LA39-E22TD/w28 |
|
LA39-E11D/g28 |
LA39-E11TDF/y22 |
LA39-E22J/y |
LA39-E11TDJ/g28 |
|
LA39-E11D/r21 |
LA39-E11TDF/y23 |
LA39-E22M/g |
LA39-E11DF/y28 |
|
LA39-E11D/r22 |
LA39-E11TDJ/b22 |
LA39-E22M/r |
LA39-E11DJ/w28 |
|
LA39-E11D/r23 |
LA39-E11TDJ/b23 |
LA39-E22M/y |
LA39-E22TDJ/r28 |
|
LA39-E11D/r28 |
LA39-E11TDJ/g22 |
LA39-E22MD/r23 |
LA39-E22TDJ/w28 |
|
LA39-E11D/w22 |
LA39-E11TDJ/g23 |
LA39-E22MT/r |
LA39-E11XD/g28 |
|
LA39-E11D/w23 |
LA39-E11TDJ/r22 |
LA39-E22MTD/r23 |
LA39-E11TD/g28 |
|
LA39-E11D/y22 |
LA39-E11TDJ/r23 |
LA39-E22T/b |
LA39-E11TDJ/y28 |
|
LA39-E11D/y23 |
LA39-E11TDJ/r23-TH |
LA39-E22T/g |
LA39-E11TDJ/b28 |
|
LA39-E11DF/b23 |
LA39-E11TDJ/w22 |
LA39-E22T/k |
LA39-E22DFS33/b28 |
|
LA39-E11DF/g21 |
LA39-E11TDJ/w23 |
LA39-E22T/r |
LA39-E11TDF/b28 |
|
LA39-E11DF/g23 |
LA39-E11TDJ/y22 |
LA39-E22T/w |
LA39-E11DJ/y28 |
|
LA39-E11DF/g25 |
LA39-E11TDJ/y23 |
LA39-E22T/y |
LA39-E11DJ/w21 |
|
LA39-E11DF/r21 |
LA39-E11TF/b |
LA39-E22TD/b23 |
LA39-E22XS/y |
|
LA39-E11DF/r23 |
LA39-E11TF/g |
LA39-E22TD/b23D |
LA39-E22XSD/g23 |
|
LA39-E11DF/w21 |
LA39-E11TF/k |
LA39-E22TD/b28 |
LA39-E22XSD/r21 |
|
LA39-E11DF/w22 |
LA39-E11TF/r |
LA39-E22TD/g21 |
LA39-E22XSDJ/g23 |
|
LA39-E11DF/w23 |
LA39-E11TF/y |
LA39-E22TD/g22 |
LA39-E22XSJ/k |
|
LA39-E11DF/y21 |
LA39-E11TJ/b |
LA39-E22TD/g23 |
LA39-E22Y/L |
|
LA39-E11DF/y22 |
LA39-E11TJ/g |
LA39-E22TD/g23D |
LA39-E22Y/LR |
|
LA39-E11DF/y23 |
LA39-E11TJ/r |
LA39-E22TD/g26 |
LA39-E22Y/R |
|
LA39-E11DJ/b23 |
LA39-E11TJ/w |
LA39-E22TD/g28 |
LA39-E22YF/L |
|
LA39-E11DJ/g21 |
LA39-E11TJ/y |
LA39-E22TD/r22 |
LA39-E22YF/R |
|
LA39-E11DJ/g22 |
LA39-E11X/g |
LA39-E22TD/r23 |
LA39-E22YS/C |
|
LA39-E11DJ/g23 |
LA39-E11X/k |
LA39-E22TD/r23D |
LA39-E22YS/L |
|
LA39-E11DJ/g25 |
LA39-E11X/k-TH |
LA39-E22TD/r28 |
LA39-E22YSJ/C |
|
LA39-E11DJ/r21 |
LA39-E11X/r |
LA39-E22TD/w23 |
LA39-E22Z/r |
|
LA39-E11DJ/r22 |
LA39-E11XD/g23 |
LA39-E22TD/w23D |
LA39-E22XSF/k |
|
LA39-E11DJ/r23 |
LA39-E11XD/r23 |
LA39-E22TD/y21 |
LA39-E11XDF/r21 |
|
LA39-E11DJ/r25 |
LA39-E11XDJ/g23 |
LA39-E22TD/y22 |
LA39-E22DJS43/g23 |
|
LA39-E11DJ/w22 |
LA39-E11XDJ/r23 |
LA39-E22TD/y23 |
LA39-E22DJS35/g23 |
|
LA39-E11DJ/w23 |
LA39-E11XF/g |
LA39-E22TD/y24 |
LA39-E11DJS99/w23 |
|
LA39-E11DJ/y22 |
LA39-E11XF/k |
LA39-E22TD/y28 |
LA39-E11JS99/g |
|
LA39-E11DJ/y25 |
LA39-E11XJ/g |
LA39-E22TDF/g21 |
LA39-E11JS99/w |
|
LA39-E11DJS20/r23 |
LA39-E11XJ/k |
LA39-E22TDF/g22 |
LA39-E11DJS99/g23 |
|
LA39-E11DJS26/r23 |
LA39-E11XS/k |
LA39-E22TDF/g23 |
LA39-E11JS99/r |
|
LA39-E11DJS4/r23 |
LA39-E11XSF/k |
LA39-E22TDF/r21 |
LA39-E22XD/w28 |
|
LA39-E11DS33/g23 |
LA39-E11XSJ/k |
LA39-E22TDF/r22 |
LA39-E22DJS99/r28 |
|
LA39-E11DS33/r23 |
LA39-E11Y/L |
LA39-E22TDF/r23 |
LA39-E22DJS99/g28 |
|
LA39-E11F/b |
LA39-E11Y/LR |
LA39-E22TDF/w23 |
LA39-E11D/y23-TH |
|
LA39-E11F/g |
LA39-E11Y/L-RS |
LA39-E22TDF/y21 |
LA39-E11XJ/k-TH |
|
LA39-E11F/k |
LA39-E11Y/R |
LA39-E22TDF/y22 |
LA39-E11TD/w23-TH |
|
LA39-E11F/r |
LA39-E11YF/L |
LA39-E22TDF/y23 |
LA39-E22MTD/y28 |
|
LA39-E11F/w |
LA39-E11YF/L-TH |
LA39-E22TDJ/b23 |
LA39-E22F/y-TH |
|
LA39-E11F/y |
LA39-E11YJ/L |
LA39-E22TDJ/g21 |
LA39-E22F/r-TH |
|
LA39-E11J/b |
LA39-E11YJ/LR |
LA39-E22TDJ/g22 |
LA39-E22YJ/R-TH |
|
LA39-E11J/g |
LA39-E11YJ/R |
LA39-E22TDJ/g23 |
LA39-E22F/g-TH |
|
LA39-E11J/k |
LA39-E11Z/r |
LA39-E22TDJ/r21 |
LA39-E22S99/g |
|
LA39-E11J/r |
LA39-E22/b |
LA39-E22TDJ/r23 |
LA39-E22XD/w23 |
|
LA39-E11J/w |
LA39-E22/g |
LA39-E22TDJ/w22 |
LA39-E22YJ/LR |
|
LA39-E11J/y |
LA39-E22/k |
LA39-E22TDJ/w23 |
LA39-E22MTD/r22 |
|
LA39-E11M/g |
LA39-E22/r |
LA39-E22TDJ/y23 |
LA39-E22TDJ/y28 |
|
LA39-E11M/k |
LA39-E22/r-TH |
LA39-E22TF/g |
LA39-E22XDF/g23 |
|
LA39-E11M/r |
LA39-E22/w |
LA39-E22TF/r |
LA39-E11S99/g-TH |
|
LA39-E11M/y |
LA39-E22/y |
LA39-E22TJ/g |
LA39-E11TDJS99/g23 |
|
LA39-E11MD/g23 |
LA39-E22D/b23 |
LA39-E22TJ/k |
LA39-E22XS/k-TH |
|
LA39-E11MD/y23 |
LA39-E22D/g21 |
LA39-E22TJ/r |
LA39-E22TDJS99/g23 |
|
LA39-E11MT/r |
LA39-E22D/g22 |
LA39-E22TJ/w |
LA39-E22TDFS99/w23 |
|
LA39-E11MTD/g23 |
LA39-E22D/g23 |
LA39-E22TJ/y |
LA39-E22/k-TH |
|
LA39-E11MTD/r23 |
LA39-E22D/g28 |
LA39-E22X/b |
LA39-E22DJS99/y23 |
|
LA39-E11S15/r |
LA39-E22D/r21 |
LA39-E22X/g |
LA39-E22D/g23-TH |
|
LA39-E11S16/g |
LA39-E22D/r22 |
LA39-E22X/k |
LA39-E22TDF/b23 |
|
LA39-E11S16/y |
LA39-E22D/r23 |
LA39-E22X/r |
LA39-E22/g-TH |
|
LA39-E11S3/r |
LA39-E22D/r28 |
LA39-E22XD/g23 |
LA39-E22TD/r23-TH |
|
LA39-E11S4/g |
LA39-E22D/w23 |
LA39-E22XD/g23-TH |
LA39-E22XSF/r |
|
LA39-E11S4/y |
LA39-E22D/y23 |
LA39-E22XD/r21 |
LA39-E22F/b |
|
LA39-E11T/b |
LA39-E22DF/b23 |
LA39-E22XD/r24 |
LA39-E11J/y-TH |
|
LA39-E11T/g |
LA39-E22DF/g23 |
LA39-E22XDF/r23 |
LA39-E11J/g-TH |
|
LA39-E11T/k |
LA39-E22DF/r22 |
LA39-E22XDJ/g23 |
LA39-E11DJS99/r21 |
|
LA39-E11T/k-TH |
LA39-E22DF/r23 |
LA39-E22XDJ/r23 |
LA39-E11DJS99/g21 |
|
LA39-E11T/r |
LA39-E22DF/w23 |
LA39-E22XF/k |
LA39-E22TDF/w23-TH |
|
LA39-E11T/w |
LA39-E22DF/y21 |
LA39-E22XJ/g |
LA39-E22X/k-TH |
|
LA39-E11T/w-RS |
LA39-E22DF/y23 |
LA39-E22XJ/k |
LA39-E11TDJS99/g28 |
|
LA39-E11T/y |
LA39-E22DJ/b23 |
LA39-E22XS/g |
LA39-E11S99/y-TH |
|
LA39-E11TD/b21 |
LA39-E22DJ/g21 |
LA39-E22XS/g-TH |
LA39-E11DS99/r26-TH |
|
LA39-E11TD/b23 |
LA39-E22DJ/g22 |
LA39-E22XS/k |
LA39-E11DJS99/b23 |
|
LA39-E11TD/g21 |
LA39-E22DJ/g23 |
LA39-E22XS/r |
LA39-E22/w-TH |
|
LA39-E11TD/g22 |
LA39-E22DJ/g26 |
LA39-E11DJ/y23 |
LA39-E22/y-TH |
|
LA39-E11TD/g23 |
LA39-E22DJ/r21 |
LA39-E11TDF/y28 |
LA39-E22MD/r21 |
|
LA39-E11TD/g23-TH |
LA39-E22DJ/r22 |
LA39-E11TDF/w28 |
LA39-E22MD/g21 |
|
LA39-E11TD/r21 |
LA39-E22DJ/r23 |
LA39-E11TDF/r28 |
LA39-E22TDF/g28 |
|
LA39-E11TD/r22 |
LA39-E22DJ/r26 |
LA39-E11TDF/g28 |
LA39-E11TDJ/b23-TH |
|
LA39-E11TD/r23 |
LA39-E22DJ/w22 |
LA39-E11TD/y28 |
LA39-E11/r-RS |
|
LA39-E11TD/r23-TH |
LA39-E22DJ/w23 |
LA39-E11TD/b28 |
LA39-E11MT/k |
|
LA39-E11TD/r28 |
LA39-E22DJ/y23 |
LA39-E22MTD/r28 |
LA39-E22J/K-TH |
