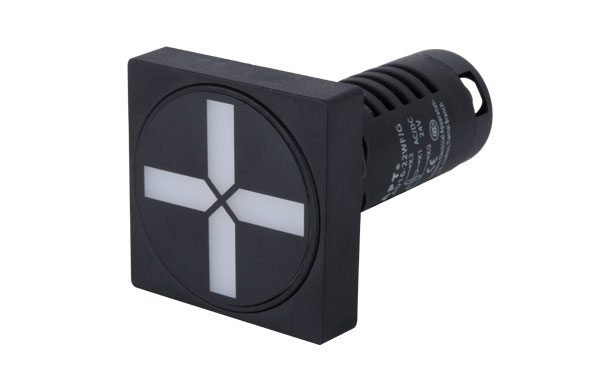

APT/西門子AD16-22WF指示燈產品參數
AD16-22系列位置指示燈采用高亮度純色LED發光芯片為光源,壽命長,耗能低,體積小,重量輕,亮度高,可靠性好,造型美觀和制造精巧,適用于電力、電訊、機床、船舶、紡織、印刷、礦山機械等設備的線路中作指示信號、預告信號、事故信號及其他指示用信號。
重要參數:
額定絕緣電壓:AC500V
光亮度:≥100cd/m2
連續工作壽命:≥30000h
頭部形狀為方形,通過不同發光形式,明確指示不同工作狀態;
零部件采用進口材料,堅固耐用,耐磨損;
內置螺釘式接線、方便
分類:隔離刀閘位置指示,斷路器位置指示,接地位置指示
絕緣電阻≥100MΩ。
交流指示燈允許電壓波動±20%
連續工作壽命≥30000H
使用頻率AC50~60Hz
環境溫度:-25℃~+55℃;
相比漏電起痕指數CTI≥175
空氣相對溫度≤98%
在振動頻率為2-80Hz加速度為0.7g下能正常工作;
污染等級為3級,安裝類別為Ⅲ類;
有“TH”標志的能在濕熱帶環境下工作。
防護等級:IP40
安裝地點的海拔:不超過 2000米
APT/西門子AD16-22WF指示燈型號一覽
型號 |
型號 |
型號 |
型號 |
型號 |
AD16-22WF/DC28 |
AD16-22WF/D28-MTO |
AD16-22WF/N23-TH |
AD16-22WF/Drg28-TH |
AD16-22WF/G31-K |
AD16-22WF/D27 |
AD16-22WF/G26-MTO |
AD16-22WF/rgDC28 |
AD16-22WF/DC23-K5 |
AD16-22WF/Dgr28 |
AD16-22WF/DC26 |
AD16-22WF/G28-MTO |
AD16-22WF/rgD31 |
AD16-22WF/D28-S3-EP |
AD16-22WF/G23-TH |
AD16-22WF/D26 |
AD16-22WF/N28-MTO |
AD16-22WF/G31-TH |
AD16-22WF/G26-K40 |
AD16-22WF/Grg28-TH |
AD16-22WF/D26-K |
AD16-22WF/N26-EP |
AD16-22WF/D31-TH |
AD16-22WF/G28-K40 |
AD16-22WF/G24 |
AD16-22WF/D26-K-TH |
AD16-22WF/G26-EP |
AD16-22WF/Drg31 |
AD16-22WF/G27-TH |
|
AD16-22WF/D28 |
AD16-22WF/D26-EP |
AD16-22WF/DC27 |
AD16-22WF/G28-K60 |
|
AD16-22WF/D28-K |
AD16-22WF/N28-K |
AD16-22WF/DC26-EP |
AD16-22WF/G26-K60 |
|
AD16-22WF/D28-K-TH |
AD16-22WF/N26-TH |
AD16-22WF/G27-EP |
AD16-22WF/D28-S3 |
|
AD16-22WF/D28-TH |
AD16-22WF/Drg23-K |
AD16-22WF/D27-EP |
AD16-22WF/D28-S5 |
|
AD16-22WF/D31 |
AD16-22WF/Drg26-K-TH |
AD16-22WF/D31-TH-EP |
AD16-22WF/D24 |
|
AD16-22WF/G23 |
AD16-22WF/Drg28-K-TH |
AD16-22WF/G31-TH-EP |
AD16-22WF/Drg26 |
|
AD16-22WF/G26 |
AD16-22WF/DCgr28 |
AD16-22WF/N32 |
AD16-22WF/D26-K60 |
|
AD16-22WF/G26-K |
AD16-22WF/G27-MTO |
AD16-22WF/D28-TH-EP |
AD16-22WF/D28-K60 |
|
AD16-22WF/G26-K-TH |
AD16-22WF/DCgr26 |
AD16-22WF/G28-TH-EP |
AD16-22WF/G28-K80 |
|
AD16-22WF/G26-TH |
AD16-22WF/G23-K |
AD16-22WF/D27-TH-EP |
AD16-22WF/D28-K80 |
|
AD16-22WF/G28 |
AD16-22WF/D31-K |
AD16-22WF/G27-TH-EP |
AD16-22WF/G26-K80 |
|
AD16-22WF/G28-K |
AD16-22WF/Drg26-K |
AD16-22WF/N31-TH |
AD16-22WF/D26-K80 |
|
AD16-22WF/G28-K-TH |
AD16-22WF/D32 |
AD16-22WF/D25 |
AD16-22WF/D31-S5 |
|
AD16-22WF/G28-TH |
AD16-22WF/Drg31-K |
AD16-22WF/G26-TH-EP |
AD16-22WF/D28-K110 |
|
AD16-22WF/G31 |
AD16-22WF/N26-TH-EP |
AD16-22WF/D26-TH-EP |
AD16-22WF/G28-K110 |
|
AD16-22WF/G32 |
AD16-22WF/D25-TH-EP |
AD16-22WF/D28-EP |
AD16-22WF/D31-K110 |
|
AD16-22WF/N26 |
AD16-22WF/G25-TH-EP |
AD16-22WF/G28-EP |
AD16-22WF/G31-K110 |
|
AD16-22WF/N28 |
AD16-22WF/G28-RS |
AD16-22WF/N28-EP |
AD16-22WF/D23-S7 |
|
AD16-22WF/N28-TH |
AD16-22WF/Dgr26 |
AD16-22WF/N23 |
AD16-22WF/Drg28-K |
|
AD16-22WF/N31 |
AD16-22WF/Drg26-TH |
AD16-22WF/DC23 |
AD16-22WF/D26-MTO |
|
AD16-22WF/G27 |
AD16-22WF/D26-S3 |
AD16-22WF/G25 |
AD16-22WF/D26-S5 |
|
AD16-22WF/D23 |
AD16-22WF/G28-K100 |
AD16-22WF/DC31 |
AD16-22WF/Drg28 |
|
AD16-22WF/D26-TH |
AD16-22WF/DC31-TH |
AD16-22WF/D23-TH |
AD16-22WF/DC26-TH |
