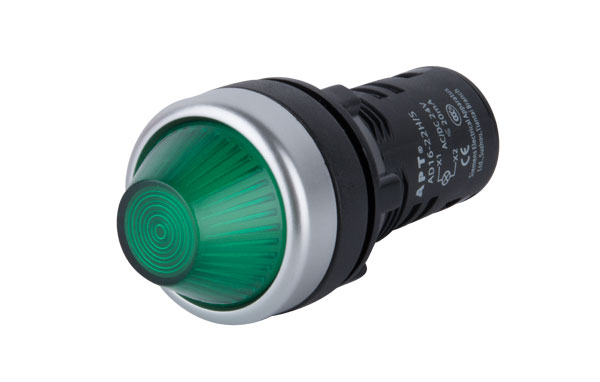

APT/上海二工AD16-22H指示燈參數說明
AD16-22系列指示燈采用高亮度純色LED發光芯片為光源，壽命長，耗能低，體積小，重量輕，亮度高，可靠性好，造型美觀和制造精巧，適用于電力、電訊、機床、船舶、紡織、印刷、礦山機械等設備的線路中作指示信號、預告信號、事故信號及其他指示用信號。
開孔尺寸：φ22.5mm，可通過選用變徑圈來實現φ25mm、φ30mm的孔徑;
燈罩為圓錐型，五種顏色，明確指示不同工作狀態；
發光體采用純色高亮LED芯片，色彩純正；
零部件采用進口材料，堅固耐用，耐磨損;
內置螺釘式接線、方便
工頻耐壓：AC1890V 50Hz .5s
絕緣電阻≥100MΩ。
交流指示燈允許電壓波動±20%
連續工作壽命≥30000H
使用頻率AC50～60Hz
環境溫度：-25℃～+55℃;
相比漏電起痕指數CTI≥175
空氣相對溫度≤98%
在振動頻率為2-80Hz加速度為0.7g下能正常工作；
污染等級為3級，安裝類別為Ⅲ類；
有“TH”標志的能在濕熱帶環境下工作。
防護等級：IP40
安裝地點的海拔：不超過 2000米
APT/上海二工AD16-22H指示燈型號一覽
|
型號 |
型號 |
型號 |
型號 |
型號 |
|
AD16-22H/y31-TH |
AD16-22H/b31S |
AD16-22H/y32-TH |
AD16-22H/b32S |
AD16-22H/r32-H |
|
AD16-22H/r31-TH |
AD16-22H/w27 |
AD16-22H/r22 |
AD16-22H/r23S-TH |
AD16-22H/g32-H |
|
AD16-22H/g27 |
AD16-22H/b27 |
AD16-22H/g22 |
AD16-22H/y22 |
AD16-22H/r23-H |
|
AD16-22H/g32S |
AD16-22H/r25 |
AD16-22H/g24S |
AD16-22H/g26-K80 |
AD16-22H/g23-H |
|
AD16-22H/y26 |
AD16-22H/y26S |
AD16-22H/y31-K60 |
AD16-22H/r26-K80 |
AD16-22H/w23S-EP |
|
AD16-22H/y27 |
AD16-22H/y32 |
AD16-22H/w30 |
AD16-22H/y26-K80 |
AD16-22H/y31S-EP |
|
AD16-22H/r27 |
AD16-22H/w23S |
AD16-22H/b23S-H |
AD16-22H/w34-TH |
AD16-22H/y23S-EP |
|
AD16-22H/g26 |
AD16-22H/y32S |
AD16-22H/y23S-H |
AD16-22H/y31S-MTO |
AD16-22H/w31S-EP |
|
AD16-22H/g23S |
AD16-22H/W26S |
AD16-22H/r23S-H |
AD16-22H/r31S-MTO |
AD16-22H/w26-K60 |
|
AD16-22H/g26S |
AD16-22H/b28 |
AD16-22H/g23S-H |
AD16-22H/g31S-MTO |
AD16-22H/r31-K60 |
|
AD16-22H/g28 |
AD16-22H/W32S |
AD16-22H/r26-TH |
AD16-22H/r21 |
AD16-22H/g31-K60 |
|
AD16-22H/g31 |
AD16-22H/r29 |
AD16-22H/y26-TH |
AD16-22H/g21 |
AD16-22H/y41-TH |
|
AD16-22H/g31S |
AD16-22H/r26 |
AD16-22H/w31-K |
AD16-22H/r31S-EP |
AD16-22H/b31 |
|
AD16-22H/g31S-K |
AD16-22H/r28-TH |
AD16-22H/w29 |
AD16-22H/g31S-EP |
AD16-22H/r35 |
|
AD16-22H/g32 |
AD16-22H/b28-TH |
AD16-22H/g31-H |
AD16-22H/b27S |
AD16-22H/w32-K60 |
|
AD16-22H/r23 |
AD16-22H/w28-TH |
AD16-22H/y31-K |
AD16-22H/y31-K80 |
AD16-22H/r22S |
|
AD16-22H/r23S |
AD16-22H/y28-TH |
AD16-22H/w26-K |
AD16-22H/r31-K80 |
AD16-22H/g22S |
|
AD16-22H/r28 |
AD16-22H/g28-TH |
AD16-22H/w31-TH |
AD16-22H/g31-K80 |
AD16-22H/g41-TH |
|
AD16-22H/r31 |
AD16-22H/w27S |
AD16-22H/r34-TH |
AD16-22H/w31-K80 |
AD16-22H/r41-TH |
|
AD16-22H/r31S |
AD16-22H/r27S |
AD16-22H/r31-K |
AD16-22H/w31S-TH |
AD16-22H/w41s |
|
AD16-22H/r32 |
AD16-22H/y27S |
AD16-22H/g31-K |
AD16-22H/w31-K110 |
AD16-22H/g41s |
|
AD16-22H/r32S |
AD16-22H/g27S |
AD16-22H/r28-K |
AD16-22H/r28-K100 |
AD16-22H/y41s |
|
AD16-22H/w21 |
AD16-22H/y21 |
AD16-22H/g28-K |
AD16-22H/g28-K100 |
AD16-22H/r41s |
|
AD16-22H/w26 |
AD16-22H/r24S |
AD16-22H/g24 |
AD16-22H/y31-K110 |
AD16-22H/r30 |
|
AD16-22H/w28 |
AD16-22H/g23 |
AD16-22H/g26-TH |
AD16-22H/w28-K100 |
AD16-22H/w31S-K60 |
|
AD16-22H/w31 |
AD16-22H/y23 |
AD16-22H/w26-TH |
AD16-22H/g31-K110 |
AD16-22H/r32S-K60 |
|
AD16-22H/w31S |
AD16-22H/b23 |
AD16-22H/r31S-TH |
AD16-22H/y28-K100 |
AD16-22H/b22S |
|
AD16-22H/w31S-K |
AD16-22H/w23 |
AD16-22H/g31S-TH |
AD16-22H/r31-K110 |
AD16-22H/b26S |
|
AD16-22H/y23S |
AD16-22H/r31S-K |
AD16-22H/r32S-TH |
AD16-22H/y31S-K60 |
AD16-22H/w22S |
|
AD16-22H/y28 |
AD16-22H/y31S-K |
AD16-22H/y31S-TH |
AD16-22H/w32s-K60 |
AD16-22H/y22S |
|
AD16-22H/y31 |
AD16-22H/b23S |
AD16-22H/w32 |
AD16-22H/y31-H |
|
|
AD16-22H/y31S |
AD16-22H/g25 |
AD16-22H/b31-TH |
AD16-22H/g23S-K |
|
|
AD16-22H/r26S |
AD16-22H/r32-TH |
AD16-22H/g31S-K60 |
AD16-22H/r23S-K |
|
|
AD16-22H/g31-TH |
AD16-22H/g32-TH |
AD16-22H/r31S-K60 |
AD16-22H/r31-H |
