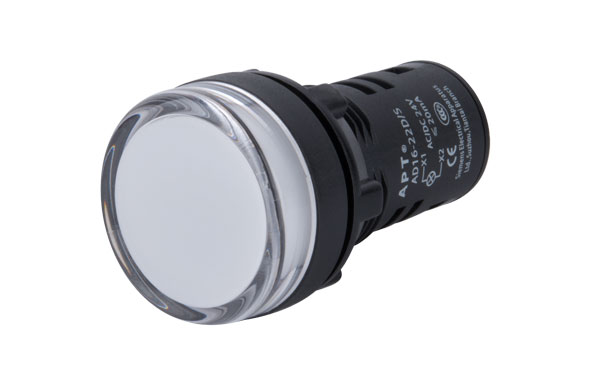

APT/西門子AD16-22D指示燈參數說明
AD16-22系列指示燈采用高亮度純色LED發光芯片為光源，壽命長，耗能低，體積小，重量輕亮度高，可靠性好，造型美觀和制造精巧，適用于電力、電訊、機床、船舶、紡織、印刷、礦山機械等設備的線路中作指示信號、預告信號、事故信號及其他指示用信號。
開孔尺寸：φ22.5mm，可通過選用變徑圈來實現φ25mm、φ30mm的孔徑;
燈殼與燈罩二層型但燈罩和殼體直徑相同，五種顏色，明確指示不同工作狀態；
發光體采用純色亮LED芯片，色彩純正；
零部件采用進口材料，堅固耐用，耐磨損;
內置螺釘式接線、方便。
工頻耐壓：AC1890V 50Hz .5s
絕緣電阻≥100MΩ。
交流指示燈允許電壓波動±20%
連續工作壽命≥30000H
使用頻率AC50～60Hz
環境溫度：-25℃～+55℃;
相比漏電起痕指數CTI≥175
空氣相對溫度≤98%
在振動頻率為2-80Hz加速度為0.7g下能正常工作；
污染等級為3級，安裝類別為Ⅲ類；
有“TH”標志的能在濕熱帶環境下工作。
防護等級：IP54
安裝地點的海拔：不超過 2000米
APT/西門子AD16-22D指示燈型號一覽
|
型號 |
型號 |
型號 |
型號 |
型號 |
|
AD16-22D/b21S |
AD16-22D/r23-K |
AD16-22D/w26S |
AD16-22DS1/g28 |
AD16-22D/yg26 |
|
AD16-22D/b22S |
AD16-22D/r23S |
AD16-22D/w26S-K |
AD16-22DS1/g31 |
AD16-22DS24/r32 |
|
AD16-22D/b23 |
AD16-22D/r23S-H |
AD16-22D/w26-TH |
AD16-22DS1/g31S |
AD16-22D/g32S-CW |
|
AD16-22D/b23S |
AD16-22D/r23S-H-TH |
AD16-22D/w27S |
AD16-22DS11/w26 |
AD16-22D/r28-CW |
|
AD16-22D/b23S-K |
AD16-22D/r23S-K |
AD16-22D/w28 |
AD16-22DS11/w28 |
AD16-22D/r23S-CW |
|
AD16-22D/b23S-TH |
AD16-22D/r23S-TH |
AD16-22D/w28-K |
AD16-22DS12/r22S |
AD16-22D/g23S-CW |
|
AD16-22D/b23-TH |
AD16-22D/r23-TH |
AD16-22D/w28-K-H |
AD16-22DS12/r28 |
AD16-22D/g31S-CW |
|
AD16-22D/b24 |
AD16-22D/r24 |
AD16-22D/w28-TH |
AD16-22DS12/r31S |
AD16-22D/r32S-CW |
|
AD16-22D/b24S |
AD16-22D/r24S |
AD16-22D/w29 |
AD16-22DS12/y31 |
AD16-22D/g28-CW |
|
AD16-22D/b26 |
AD16-22D/r25 |
AD16-22D/w29-K |
AD16-22DS12/y31S |
AD16-22D/r31S-CW |
|
AD16-22D/b26S |
AD16-22D/r25-H |
AD16-22D/w30 |
AD16-22DS15/g31S |
AD16-22D/b31S-TH |
|
AD16-22D/b26-TH |
AD16-22D/r25S-K |
AD16-22D/w31 |
AD16-22DS2/r28 |
AD16-22D/b27S |
|
AD16-22D/b28 |
AD16-22D/r26 |
AD16-22D/w31-H |
AD16-22DS2/r31 |
AD16-22DS25/r31 |
|
AD16-22D/b29 |
AD16-22D/r26K |
AD16-22D/w31-K |
AD16-22DS2/r31S |
AD16-22D/y32-H |
|
AD16-22D/b31 |
AD16-22D/r26S |
AD16-22D/w31S |
AD16-22DS22/r31S |
AD16-22D/g21S-TH |
|
AD16-22D/b31-K |
AD16-22D/r26S-K |
AD16-22D/w31S-H |
AD16-22DS23/g31S |
AD16-22D/b21 |
|
AD16-22D/b31S |
AD16-22D/r26S-TH |
AD16-22D/w31S-K |
AD16-22DS3/g31S |
AD16-22D/w32-H |
|
AD16-22D/b31S-K |
AD16-22D/r26-TH |
AD16-22D/w31S-TH |
AD16-22DS3/y31S |
AD16-22D/r21S-TH |
|
AD16-22D/b31-TH |
AD16-22D/r27 |
AD16-22D/w31-TH |
AD16-22DS4/g31S |
AD16-22D/w21S-TH |
|
AD16-22D/b32 |
AD16-22D/r27S |
AD16-22D/w32 |
AD16-22DS4/r31S |
AD16-22D/w26S-TH |
|
AD16-22D/b32S |
AD16-22D/r28 |
AD16-22D/w32-K |
AD16-22DS99/b28 |
AD16-22DS99/y26S |
|
AD16-22D/g21 |
AD16-22D/r28-H |
AD16-22D/w32S |
AD16-22DS99/g23S |
AD16-22D/w23S-RS |
|
AD16-22D/g21-K |
AD16-22D/r28-K |
AD16-22D/w32S-K |
AD16-22DS99/g23S-TH |
AD16-22D/g23S-RS |
|
AD16-22D/g21S |
AD16-22D/r28-K-H |
AD16-22D/w32S-TH |
AD16-22DS99/g31 |
AD16-22DS22/r26 |
|
AD16-22D/g22 |
AD16-22D/r28-TH |
AD16-22D/w32-TH |
AD16-22DS99/g31S |
AD16-22D/b23S-RS |
|
AD16-22D/g22-H |
AD16-22D/r29 |
AD16-22D/wg31 |
AD16-22DS99/g31S-TH |
AD16-22D/r23S-RS |
|
AD16-22D/g22K |
AD16-22D/r30 |
AD16-22D/y21 |
AD16-22DS99/r23S |
AD16-22DS23/g26 |
|
AD16-22D/g22S |
AD16-22D/r31 |
AD16-22D/y21-K |
AD16-22DS99/r28 |
AD16-22D/y23S-RS |
|
AD16-22D/g22S-H |
AD16-22D/r31-H |
AD16-22D/y21S |
AD16-22DS99/r31 |
AD16-22DS99/g28 |
|
AD16-22D/g23 |
AD16-22D/r31-K |
AD16-22D/y22 |
AD16-22DS99/r31S |
AD16-22DS99/r26 |
|
AD16-22D/g23-H |
AD16-22D/r31-K-TH |
AD16-22D/y22-H |
AD16-22DS99/r32S |
AD16-22D/g31-K-RS |
|
AD16-22D/g23-K |
AD16-22D/r31S |
AD16-22D/y22S |
AD16-22DS99/w23S |
AD16-22DS99/g26 |
|
AD16-22D/g23S |
AD16-22D/r31S-H |
AD16-22D/y22S-H |
AD16-22DS99/w23S-TH |
AD16-22D/rb28 |
|
AD16-22D/g23S-H |
AD16-22D/r31S-K |
AD16-22D/y23 |
AD16-22DS99/w28 |
AD16-22D/rg23-TK |
|
AD16-22D/g23S-K |
AD16-22D/r31S-RS |
AD16-22D/y23-H |
AD16-22DS99/w31 |
AD16-22D/r27-K |
|
AD16-22D/g23S-TH |
AD16-22D/r31S-TH |
AD16-22D/g31 |
AD16-22DS99/w31S |
AD16-22D/y31S-IP65 |
|
AD16-22D/g23-TH |
AD16-22D/r31-TH |
AD16-22D/g31S |
AD16-22DS99/y26 |
AD16-22D/rg26-TK |
|
AD16-22D/g24 |
AD16-22D/r32 |
AD16-22D/w27 |
AD16-22DS99/y28 |
AD16-22D/bg23 |
|
AD16-22D/g24S |
AD16-22D/r32-K |
AD16-22D/g25S-RS |
AD16-22DS99/y31 |
AD16-22D/br28 |
|
AD16-22D/g24S-TH |
AD16-22D/r32S |
AD16-22D/g31S-RS |
AD16-22DS99/y31S |
AD16-22D/br23 |
|
AD16-22D/g24-TH |
AD16-22D/r32S-K |
AD16-22DY/g26 |
AD16-22DS99/y32S |
AD16-22D/br31 |
|
AD16-22D/g25 |
AD16-22D/r32S-TH |
AD16-22DY/r26 |
AD16-22DY/g28 |
AD16-22DS25/r28 |
|
AD16-22D/g25-H |
AD16-22D/r32-TH |
AD16-22D/r25S-RS |
AD16-22DY/r28 |
AD16-22DS24/g28 |
|
AD16-22D/g25S-H |
AD16-22D/rg22 |
AD16-22DY/y26 |
AD16-22DY/r31 |
AD16-22D/gy23 |
|
AD16-22D/g25S-K |
AD16-22D/rg23 |
AD16-22D/y23-K |
AD16-22DY/w28 |
AD16-22D/g31S-IP65 |
|
AD16-22D/g26 |
AD16-22D/rg23-TH |
AD16-22D/y23S-H |
AD16-22DY/w31 |
AD16-22D/w31-K-TH |
|
AD16-22D/g26-K |
AD16-22D/rg25 |
AD16-22D/y23S-K |
AD16-22DY/y28 |
AD16-22D/r31S-IP65 |
|
AD16-22D/g26S |
AD16-22D/rg25-H |
AD16-22D/y23S-TH |
AD16-22D/y23S |
AD16-22D/g31-K-TH |
|
AD16-22D/g26S-K |
AD16-22D/rg26 |
AD16-22D/y23-TH |
AD16-22D/g25S |
AD16-22D/r31S-H-K-TH |
|
AD16-22D/g26S-TH |
AD16-22D/rg26-H |
AD16-22D/y24 |
AD16-22D/r25S |
AD16-22D/yr23 |
|
AD16-22D/g26-TH |
AD16-22D/rg26-K |
AD16-22D/y24S |
AD16-22DS1/g26 |
AD16-22D/g31S-H-K-TH |
|
AD16-22D/g27 |
AD16-22D/rg27 |
AD16-22D/y25 |
AD16-22DS2/r26 |
AD16-22D/y28-RS |
|
AD16-22D/g27S |
AD16-22D/rg28 |
AD16-22D/y25S |
AD16-22DS99/w26 |
AD16-22D/r28-RS |
|
AD16-22D/g28 |
AD16-22D/rg28-K |
AD16-22D/y26 |
AD16-22D/y23-RS |
AD16-22D/b23S-H |
|
AD16-22D/g28-H |
AD16-22D/rg31 |
AD16-22D/y26-H |
AD16-22DS4/g31 |
AD16-22D/ry28 |
|
AD16-22D/g28-K |
AD16-22D/rg31-H |
AD16-22D/y26-K |
AD16-22D/y26S-K |
AD16-22DS99/y23 |
|
AD16-22D/g28-K-H |
AD16-22D/rg32 |
AD16-22D/y26S |
AD16-22DS24/g31 |
AD16-22DS99/w23 |
|
AD16-22D/g28-TH |
AD16-22D/ry23 |
AD16-22D/y26-TH |
AD16-22DS99/w29 |
AD16-22D/b23-K |
|
AD16-22D/g29 |
AD16-22D/ry26-H |
AD16-22D/y27 |
AD16-22D/R26S-CW |
AD16-22D/y32-K |
|
AD16-22D/g31-H |
AD16-22D/ry31 |
AD16-22D/y27S |
AD16-22DS99/r26s-TH |
AD16-22D/g26S-K80 |
|
AD16-22D/g31-K |
AD16-22D/w21 |
AD16-22D/y28 |
AD16-22D/Y26S-CW |
AD16-22D/w26S-K80 |
|
AD16-22D/g31S-H |
AD16-22D/w21-K |
AD16-22D/y28-K |
AD16-22D/g23S-H-TH |
AD16-22D/g31S-K80 |
|
AD16-22D/g31S-K |
AD16-22D/w21S |
AD16-22D/y28-TH |
AD16-22DS2/r32 |
AD16-22D/w31S-K80 |
|
AD16-22D/g31S-TH |
AD16-22D/w22 |
AD16-22D/y29 |
AD16-22D/w23S-H-TH |
AD16-22D/y26S-K80 |
|
AD16-22D/g31-TH |
AD16-22D/w22S |
AD16-22D/y30 |
AD16-22D/b23S-H-TH |
AD16-22D/r31S-K80 |
|
AD16-22D/g32 |
AD16-22D/w23 |
AD16-22D/y31 |
AD16-22D/G26S-CW |
AD16-22D/r26S-K80 |
|
AD16-22D/g32-K |
AD16-22D/w23-H |
AD16-22D/y31-H |
AD16-22D/r26S-H-TH |
AD16-22D/y31S-K80 |
|
AD16-22D/g32S |
AD16-22D/w23-K |
AD16-22D/y31-K |
AD16-22D/g26S-H-TH |
AD16-22D/yw26 |
|
AD16-22D/g32S-K |
AD16-22D/w23S |
AD16-22D/y31S |
AD16-22DS/w26s-TH |
AD16-22D/ry22 |
|
AD16-22D/g32S-TH |
AD16-22D/w23S-H |
AD16-22D/y31S-H |
AD16-22D/Y26s-H-TH |
AD16-22D/r31-K-RS |
|
AD16-22D/g32-TH |
AD16-22D/w23S-K |
AD16-22D/y31S-K |
AD16-22DS99/g26s-TH |
AD16-22D/g26-H |
|
AD16-22D/gr26 |
AD16-22D/w23S-K-TH |
AD16-22D/y31S-TH |
AD16-22D/y23S-H-TH |
AD16-22D/b26-H |
|
AD16-22D/r21 |
AD16-22D/w23S-TH |
AD16-22D/y31-TH |
AD16-22DS99/y26s-TH |
AD16-22D/r26-H |
|
AD16-22D/r21S |
AD16-22D/w23-TH |
AD16-22D/y32 |
AD16-22D/W26s-H-TH |
AD16-22DY/b31 |
|
AD16-22D/r22 |
AD16-22D/w24 |
AD16-22D/y32S |
AD16-22D/r22S K |
AD16-22DY/g31 |
|
AD16-22D/r22-H |
AD16-22D/w24S |
AD16-22D/y32S-K |
AD16-22D/w22S-K |
AD16-22DY/y31 |
|
AD16-22D/r22S |
AD16-22D/w25 |
AD16-22D/y32S-TH |
AD16-22D/yw31 |
AD16-22D/y31-K60 |
|
AD16-22D/r22S-H |
AD16-22D/w25S |
AD16-22D/y32-TH |
AD16-22D/b22 |
AD16-22D/r28-K60 |
|
AD16-22D/r23 |
AD16-22D/w26 |
AD16-22D/yg23 |
AD16-22D/rg31-TK |
AD16-22D/r31-K60 |
|
AD16-22D/r23-H |
AD16-22D/w26-K |
AD16-22D/yg31 |
AD16-22D/bg31 |
AD16-22D/y28-K60 |
