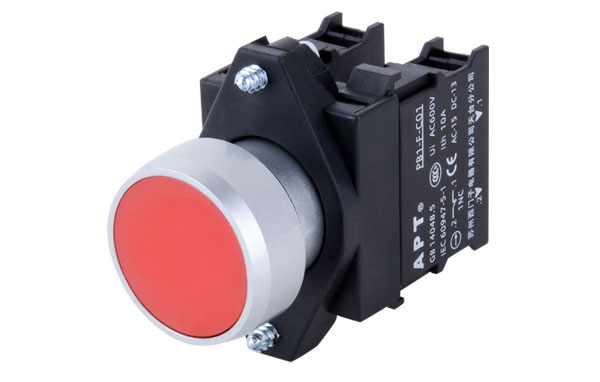

APT/西門子PB1L系列按鈕開關參數說明
金屬化系列按鈕，模塊化組合結構，單片卡扣式觸點模塊和發光模塊，安裝維護方便、結構可靠。材料符合歐盟RoHS標準要求，頭部防護等級高達IP65。帶有觸點自潔功能的觸點模塊，接觸可靠性達百萬分級。一體化結構設計的發光模塊，功耗低、電壓規格齊全。
重要參數：
額定絕緣電壓：AC 600V
約定發熱電流：10A
電氣壽命：50萬次/AC-15 6A/220V
防護等級：IP65
安裝孔徑：Φ22.5mm
紅、綠、黃、藍、白、黑六種顏色
鋅鋁合金壓鑄頭部，堅固耐用
觸點采用銀合金，通斷可靠、電氣壽命長。
模塊化組合結構
額定絕緣電壓：AC600V 50Hz
照明模塊AC400V 50Hz; DC250V
工頻耐受電壓：AC1890V
約定發熱電流：10A
機械壽命：一般鈕、蘑菇鈕、帶燈鈕300萬次
旋鈕、緊湊型按鈕、雙位按鈕、自鎖鈕30萬次
鑰匙鈕、緊停鈕5萬次
開關元件300萬次
電氣壽命：50萬次/AC-15 at 6A/230V
環境溫度：-25℃～70℃
儲存溫度：-40℃～80℃
防護等級：IP65
動作頻率：1200次/1小時
產品認證：CCC、CE、RoHS
APT/西門子PB1L系列按鈕開關型號一覽
|
型號 |
型號 |
型號 |
型號 |
型號 |
|
PB1L-11XD/y23 |
PB1L-10XD/b31 |
PB1L-10XD/y23 |
PB1L-21Y/L |
PB1L-22/k |
|
PB1L-11D/r22 |
PB1L-10XD/b23 |
PB1L-20CX/k |
PB1L-11M/r |
PB1L-22/g |
|
PB1L-10XD/r31 |
PB1L-11RD/rgw23 |
PB1L-AAYS6/R |
PB1L-20D/g31 |
PB1L-22Y/L-EP |
|
PB1L-01M/r-EP |
PB1L-40XD/g23 |
PB1L-AAXS6/k-MTO |
PB1L-20D/y23 |
PB1L-22/r-EP |
|
PB1L-02ZR/r-EP |
PB1L-11TD/b22 |
PB1L-11XD/r26 |
PB1L-10XD/w31fu |
PB1L-22/g-EP |
|
PB1L-10D/b23-EP |
PB1L-11D/y22 |
PB1L-10DS99/r23 |
PB1L-22D/g31 |
PB1L-11X/k-EP |
|
PB1L-10D/w23-EP |
PB1L-10ZR/r-30 |
PB1L-11Y/Lfu |
PB1L-20RD/rgr31 |
PB1L-11/b-EP |
|
PB1L-10Y/E-EP |
PB1L-11T/r-H |
PB1L-20XS6D/r23ffu |
PB1L-20X/g |
PB1L-AAS99/y |
|
PB1L-20/k-EP |
PB1L-11YS6/C |
PB1L-20/y |
PB1L-10XD/y31 |
PB1L-11XS6D/w23 |
|
PB1L-22XD/g31 |
PB1L-11MD/g31 |
PB1L-11RD/rgg23 |
PB1L-20D/g25 |
PB1L-21X/k |
|
PB1L-10TD/g31-H |
PB1L-11/y-H |
PB1L-10D/r23-H |
PB1L-33/r |
PB1L-11/y |
|
PB1L-20TD/g31 |
PB1L-11CX/y |
PB1L-10TD/r23-H |
PB1L-20D/r31 |
PB1L-40D/W26 |
|
PB1L-22XS6D/g31f |
PB1L-20CXS6D/b23 |
PB1L-10S99/w |
PB1L-20RD/rgr23 |
PB1L-11D/r31 |
|
PB1L-22YS6/C |
PB1L-AAY/Rfu |
PB1L-22D/w21 |
PB1L-10D/g31-K40 |
PB1L-20/g |
|
PB1L-10DS99/w23 |
PB1L-11MD/r23 |
PB1L-22D/w23 |
PB1L-30/b |
PB1L-11XD/b31 |
|
PB1L-20XS6D/g23ffu |
PB1L-11XS6D/r31fu |
PB1L-22XS6/k |
PB1L-04T/r |
PB1L-11D/g31 |
|
PB1L-10CX/kfu |
PB1L-11XD/g23 |
PB1L-22XS6/r |
PB1L-02T/r |
PB1L-11TD/y23 |
|
PB1L-22CXS6/kffu |
PB1L-20XD/g23 |
PB1L-22XS6/b |
PB1L-10D/g23-K10 |
PB1L-11XS6/b |
|
PB1L-11RD/rgg31 |
PB1L-10DS99/g23 |
PB1L-01MD/g23 |
PB1L-33XS6/k |
PB1L-02ZLA/r |
|
PB1L-10X/k-EP |
PB1L-01Y/Lfu |
PB1L-22XS6/y |
PB1L-11D/y23 |
PB1L-11XS6D/g31ffu |
|
PB1L-22CXS6/k |
PB1L-40ZR/r |
PB1L-20DS99/g25 |
PB1L-AAS99/r |
PB1L-10XD/g23 |
|
PB1L-11T/r |
PB1L-22/b |
PB1L-20XD/b31 |
PB1L-AAS99/g |
PB1L-10CXD/r23 |
|
PB1L-40X/k |
PB1L-22X/g |
PB1L-11XD/b23 |
PB1L-20ZR/r |
PB1L-10CXD/y23 |
|
PB1L-40XD/g31 |
PB1L-10XS6D/g23ffu |
PB1L-11XD/r23 |
PB1L-10S99/g |
PB1L-10CXD/g23 |
|
PB1L-40X/g |
PB1L-22ZR/r |
PB1L-20XS6D/g23 |
PB1L-10S99/k |
PB1L-10M/g |
|
PB1L-20XS6D/g31 |
PB1L-10X/kfu |
PB1L-10MD/g23 |
PB1L-02ZY/r |
PB1L-10M/y |
|
PB1L-11XS6D/w23ffu |
PB1L-11X/kfu |
PB1L-11TD/w21 |
PB1L-11CX/b |
PB1L-10CXD/b23 |
|
PB1L-02Y/E |
PB1L-11S99/g |
PB1L-11TD/w23 |
PB1L-20DS56/g25 |
PB1L-11/w |
|
PB1L-10M/r |
PB1L-11TD/y31-H |
PB1L-20MD/r23 |
PB1L-11XD/w23 |
PB1L-12/k |
|
PB1L-20D/r23-H |
PB1L-20D/w26 |
PB1L-11/r-H |
PB1L-02D/r23 |
PB1L-01S99/r |
|
PB1L-40CXS6/k |
PB1L-11XS6D/w31f |
PB1L-20Y/E |
PB1L-60CXS6/k |
PB1L-22XD/g23 |
|
PB1L-33CXS6/k |
PB1L-AADS99/g |
PB1L-30YS6/E |
PB1L-11D/w31 |
PB1L-11XS6D/g23ffu |
|
PB1L-33CX/y |
PB1L-AADS99/r |
PB1L-22Y/E |
PB1L-01D/y31-H |
PB1L-02XD/g23 |
|
PB1L-11X/k-MTO |
PB1L-40D/g31 |
PB1L-20CX/kfu |
PB1L-01D/g31-H |
PB1L-01MS99/r |
|
PB1L-32CX/k |
PB1L-01ZR/r-EP |
PB1L-33ZR/r |
PB1L-20YS6/Cffu |
PB1L-02ML/r |
|
PB1L-10XD/w23 |
PB1L-10D/w31-K40 |
PB1L-11X/g |
PB1L-40XS6/k |
PB1L-11CXS6D/g32fu |
|
PB1L-11/b |
PB1L-03ZR/r-EP |
PB1L-11CXS6/r |
PB1L-21CX/k |
PB1L-40YS6/E |
|
PB1L-20Y/L |
PB1L-20TD/r31 |
PB1L-11CXS6/g |
PB1L-31CX/k |
PB1L-11XS6/kffu |
|
PB1L-11RD/grg31 |
PB1L-20CX/r |
PB1L-11CXS6/y |
PB1L-22/w |
PB1L-30CX/k |
|
PB1L-10XS6D/g31 |
PB1L-11TD/r23 |
PB1L-11X/y |
PB1L-22/r |
PB1L-22CX/k |
