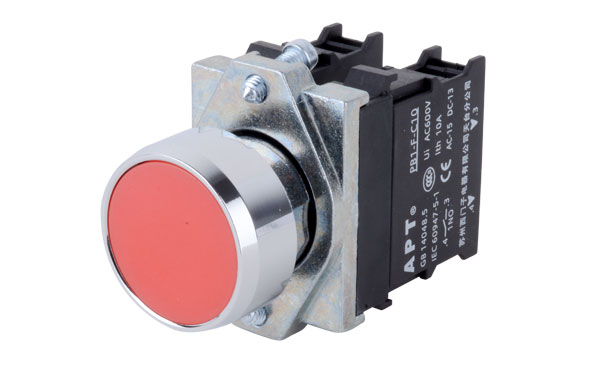

APT/上海二工PB1S系列按鈕開關參數說明
金屬系列按鈕，模塊化組合結構，單片卡扣式觸點模塊和發光模塊，安裝維護方便、結構可靠。材料符合歐盟RoHS標準要求，頭部防護等級高達IP65。帶有觸點自潔功能的觸點模塊，接觸可靠性達百萬分級。一體化結構設計的發光模塊，功耗低、電壓規格齊全。
重要參數：
額定絕緣電壓：AC 600V
約定發熱電流：10A
電氣壽命：50萬次/AC-15 6A/220V
防護等級：IP65
安裝孔徑：Φ22.5mm
紅、綠、黃、藍、白、黑六種顏色
鋅鋁合金壓鑄頭部，堅固耐用
觸點采用銀合金，通斷可靠、電氣壽命長。
模塊化組合結構
額定絕緣電壓：AC600V 50Hz
照明模塊AC400V 50Hz; DC250V
工頻耐受電壓：AC1890V 50HZ.1min
約定發熱電流：10A
機械壽命：一般鈕、蘑菇鈕、帶燈鈕300萬次
旋鈕、緊湊型按鈕、雙位按鈕、自鎖鈕30萬次
鑰匙鈕、緊停鈕5萬次
開關元件300萬次
電氣壽命：50萬次/AC-15 at 6A/230V
環境溫度：-25℃～70℃
儲存溫度：-40℃～80℃
防護等級：IP65
動作頻率：1200次/1小時
產品認證：CCC、CE、RoHS
APT/上海二工PB1S系列按鈕開關型號一覽
|
型號 |
型號 |
型號 |
型號 |
型號 |
|
PB1S-20/r-H |
PB1S-AAT/y |
PB1S-22CXS6/r |
PB1S-11XS6/kffu |
PB1S-11D/w31 |
|
PB1S-AA/w |
PB1S-AAZLA/r |
PB1S-22CXS6/g |
PB1S-10CXD/r28 |
PB1S-10Y/R |
|
PB1S-10D/r31 |
PB1S-20/b |
PB1S-22CXS6/kffu |
PB1S-02ML/r |
PB1S-20Y/L-EP |
|
PB1S-11XD/r23-EP |
PB1S-AAR/rg |
PB1S-22CXD/r23 |
PB1S-20D/g31 |
PB1S-20XS6/b |
|
PB1S-10X/r |
PB1S-AAX/b |
PB1S-22CXD/g23 |
PB1S-11XD/g23 |
PB1S-11/b |
|
PB1S-AAXS6/b |
PB1S-AAX/y |
PB1S-22CXD/y23 |
PB1S-11XD/r23 |
PB1S-10XD/g23-EP |
|
PB1S-AAXS6D/wffu |
PB1S-AAX/w |
PB1S-22CXS6D/r23 |
PB1S-10TD/r23-H |
PB1S-02ML/r-EP |
|
PB1S-11R/rg |
PB1S-AACX/kfu |
PB1S-22CXS6D/g23 |
PB1S-11ZR/r-EP |
PB1S-02XS6/k |
|
PB1S-AAT/w |
PB1S-AACXD/r |
PB1S-22CXS6D/r23ffu |
PB1S-20CXD/w31 |
PB1S-11RD/rgg23 |
|
PB1S-20T/g |
PB1S-AACXS6D/g |
PB1S-22CXS6D/b23ffu |
PB1S-AADS99/r |
PB1S-AAX/g |
|
PB1S-AAML/r |
PB1S-AAM/b |
PB1S-22/y |
PB1S-11T/w |
PB1S-11D/g31 |
|
PB1S-AAYS6/Lfu |
PB1S-AAM/w |
PB1S-11ML/r |
PB1S-11T/y |
PB1S-01D/y23 |
|
PB1S-22ZR/r |
PB1S-11TD/g23 |
PB1S-22T/r |
PB1S-11T/g |
PB1S-AAMD/g |
|
PB1S-11/g |
PB1S-AATD/b |
PB1S-22T/g |
PB1S-01D/g23 |
PB1S-AAM/k |
|
PB1S-10CX/k |
PB1S-AAT/b |
PB1S-22T/y |
PB1S-11T/b |
PB1S-AATD/g |
|
PB1S-AARD/rg |
PB1S-30XS6D/r23ffu |
PB1S-22DS99/r23 |
PB1S-AAMD/w |
PB1S-11XS6/k |
|
PB1S-10/b |
PB1S-20D/b23 |
PB1S-22DS99/g23 |
PB1S-01ML/y |
PB1S-10D/r23-EP |
|
PB1S-AAXD/y |
PB1S-20M/g |
PB1S-22TD/r23 |
PB1S-20Y/Lfu |
PB1S-10T/k |
|
PB1S-20/w |
PB1S-11S99/g |
PB1S-22TD/g23 |
PB1S-10XS6/kffu |
PB1S-20CXS6/kffu |
|
PB1S-11Y/L-EP |
PB1S-11S99/r |
PB1S-22TD/y23 |
PB1S-01T/b |
PB1S-11S99/k |
|
PB1S-10M/r-60-EP |
PB1S-20Y/L |
PB1S-11DS99/r31 |
PB1S-10D/b31 |
PB1S-02ZL/r |
|
PB1S-10D/g21 |
PB1S-AAXS6/gffu |
PB1S-11DS99/g31 |
PB1S-20CXD/y31 |
PB1S-10S33/w |
|
PB1S-20YS6/CRf |
PB1S-22Y/E |
PB1S-20XS6/kf |
PB1S-01/g |
PB1S-01X/k |
|
PB1S-01ML/k |
PB1S-20XS6/kfu |
PB1S-40CXS6/k |
PB1S-11XD/y23 |
PB1S-10TDS99/g23 |
|
PB1S-10D/r25 |
PB1S-40Y/E |
PB1S-02D/g23 |
PB1S-10CX/b |
PB1S-AAS99/y |
|
PB1S-10D/g25 |
PB1S-11CX/g |
PB1S-02D/r23 |
PB1S-10CXD/b31 |
PB1S-AACXD/g |
|
PB1S-20CXD/g31 |
PB1S-11CX/k |
PB1S-02TD/r23 |
PB1S-11RD/rg |
PB1S-11D/g23 |
|
PB1S-AAXS6D/gffu |
PB1S-20TD/r31 |
PB1S-10Y/Lfu |
PB1S-20CXS6/bffu |
PB1S-AAZY/r |
|
PB1S-20YS6/Cffu |
PB1S-11D/b31 |
PB1S-11TD/w23 |
PB1S-01ZR/r-30 |
PB1S-20D/g23-H |
|
PB1S-11M/g |
PB1S-11D/y31 |
PB1S-10/w |
PB1S-20TD/r22+F3-1 |
PB1S-10/r-H |
|
PB1S-AAM/r |
PB1S-11X/r |
PB1S-01/k-PMC |
PB1S-11M/k |
PB1S-11D/y23-H |
|
PB1S-10M/y |
PB1S-11X/g |
PB1S-10/b-PMC |
PB1S-11TD/r23 |
PB1S-11D/r23-H |
|
PB1S-11TDS99/g23 |
PB1S-11X/b |
PB1S-10/k-PMC |
PB1S-10D/b21 |
PB1S-AA/b-H |
|
PB1S-10XD/g31 |
PB1S-11X/y |
PB1S-10D/g23-PMC |
PB1S-01D/w23 |
PB1S-AA/r-H |
|
PB1S-10/r |
PB1S-11X/w |
PB1S-10X/k-PMC |
PB1S-20Y/Lfu-EP |
PB1S-AAD/b-H |
|
PB1S-20X/r |
PB1S-11XD/r31 |
PB1S-02ZR/r-PMC |
PB1S-33ZR/r |
PB1S-10D/g23-H |
|
PB1S-AATD/r |
PB1S-11XD/g31 |
PB1S-20XS6/kffu-PMC |
PB1S-AAS99/w |
PB1S-AA/y-H |
|
PB1S-AAXS6D/w |
PB1S-11XD/b31 |
PB1S-20XS6/K-PMC |
PB1S-20CXD/g23 |
PB1S-11D/g23-H |
|
PB1S-10S99/g |
PB1S-11XD/y31 |
PB1S-11T/r |
PB1S-10D/g31 |
PB1S-22/g-H |
|
PB1S-01S99/r |
PB1S-11M/r |
PB1S-01D/b23 |
PB1S-10D/y23-EP |
PB1S-20/k-H |
|
PB1S-20XS6D/r31 |
PB1S-11MD/r31 |
PB1S-10D/r23-K5 |
PB1S-01D/r23 |
PB1S-AA/g-H |
|
PB1S-AAX/r |
PB1S-11YS6/C |
PB1S-10D/g23-K5 |
PB1S-01ML/r |
PB1S-AAM/r-30 |
|
PB1S-AAZRA/r |
PB1S-11RD/rgy31 |
PB1S-01T/y-H |
PB1S-AAM/y |
PB1S-AAM/g-30 |
|
PB1S-AACX/y |
PB1S-02ZLA/r |
PB1S-10XD/b23-EP |
PB1S-11XD/w26 |
PB1S-AAML/r-30 |
|
PB1S-22YS6/E |
PB1S-02ZYA/r |
PB1S-10XD/g23 |
PB1S-20CXS6/k |
PB1S-AAM/r-60 |
|
PB1S-20/k |
PB1S-20YS6/C-EP |
PB1S-11ZLA/r |
PB1S-AACXD/y |
PB1S-10D/y23-H |
|
PB1S-01/k |
PB1S-20CXS6D/g23 |
PB1S-10TD/r23 |
PB1S-AACXD/b |
PB1S-01D/y23-H |
|
PB1S-AACXS6D/gfu |
PB1S-10CXD/g31 |
PB1S-01M/r |
PB1S-11YS6/Cffu |
PB1S-AAZR/r-30 |
|
PB1S-11XD/w31 |
PB1S-20CXS6/kfu |
PB1S-10XD/r23 |
PB1S-10D/b23 |
PB1S-AAMD/r |
|
PB1S-AAXS6D/yffu |
PB1S-20D/g22 |
PB1S-20XS6D/r23 |
PB1S-10TD/g23-H |
PB1S-AAMD/y |
|
PB1S-11D/r23 |
PB1S-20D/g23 |
PB1S-AACXS6/kf |
PB1S-AAXD/g |
PB1S-10D/r23 |
|
PB1S-11D/y23 |
PB1S-20XD/g23 |
PB1S-10Y/E |
PB1S-AAXS6D/g |
PB1S-20XS6/k |
|
PB1S-AAXS6D/y |
PB1S-20XS6D/g23f |
PB1S-02TD/r22 |
PB1S-01D/r31 |
PB1S-AA/k |
|
PB1S-AAXS6D/r |
PB1S-20TD/g31 |
PB1S-11D/r28 |
PB1S-03ZR/r |
PB1S-03ML/y |
|
PB1S-04ZR/r |
PB1S-11D/w28 |
PB1S-11TD/r31 |
PB1S-10M/g |
PB1S-20YS6/E |
|
PB1S-20YS6/C |
PB1S-11D/b28 |
PB1S-22D/b23 |
PB1S-AAXD/r |
PB1S-01ZY/r |
|
PB1S-20D/y23 |
PB1S-AAXS6/kfu |
PB1S-22D/r26 |
PB1S-22X/k |
PB1S-30XS6/k |
|
PB1S-20D/w23 |
PB1S-22D/r23 |
PB1S-10MD/r31 |
PB1S-11XS6/kf |
PB1S-AAXS6D/gfu |
|
PB1S-20D/r23 |
PB1S-22D/g23 |
PB1S-11ZL/r |
PB1S-AAML/y |
PB1S-AAD/y |
|
PB1S-22ZY/r-30 |
PB1S-22D/y23 |
PB1S-30TD/r32 |
PB1S-10D/g23-EP |
PB1S-20XS6D/g23ffu |
|
PB1S-22ZL/r |
PB1S-11CXD/w23 |
PB1S-11/r-EP |
PB1S-01D/r23-EP |
PB1S-20XS6D/g23 |
|
PB1S-01ZL/r |
PB1S-11CXD/y23 |
PB1S-10D/g31-EP |
PB1S-11RD/rgy23 |
PB1S-11ZR/r |
|
PB1S-11Y/Lfu |
PB1S-11CXS6/kf |
PB1S-10D/y31 |
PB1S-10S99/k |
PB1S-10/g |
|
PB1S-AAX/kfu |
PB1S-11CXS6D/g23f |
PB1S-AAXS6/r |
PB1S-AAT/r |
PB1S-01/r |
|
PB1S-20XS6D/y23 |
PB1S-11CXS6D/y23 |
PB1S-10TD/w23 |
PB1S-AAML/k |
PB1S-AAD/g |
|
PB1S-AA/g-EP |
PB1S-11RD/rgw23-EP |
PB1S-01TD/y23 |
PB1S-11DS99/g23 |
PB1S-22XD/g23 |
|
PB1S-AA/r-EP |
PB1S-20YS6/E-EP |
PB1S-11T/g-H |
PB1S-11TD/y23 |
PB1S-20XS6/kffu |
|
PB1S-AA/w-EP |
PB1S-AATD/y |
PB1S-10X/w |
PB1S-10/g-EP |
PB1S-11/w |
|
PB1S-AAZR/r-EP |
PB1S-AAT/g-H |
PB1S-10TD/g23 |
PB1S-02ZR/r-EP |
PB1S-02M/y |
|
PB1S-AACXS6/b |
PB1S-11D/r26 |
PB1S-10TD/y23 |
PB1S-11Y/E |
PB1S-10ZR/r |
|
PB1S-AACXS6D/rffu |
PB1S-11D/g26 |
PB1S-11RD/rgw31 |
PB1S-10T/r |
PB1S-AA/y |
|
PB1S-02ZY/r |
PB1S-11D/y26 |
PB1S-11TS99/r |
PB1S-01Y/E |
PB1S-11/k |
|
PB1S-11D/r31 |
PB1S-10XS6/k |
PB1S-20XS6D/b31 |
PB1S-11/y |
PB1S-11XD/w23 |
|
PB1S-11ZRA/r |
PB1S-22/r |
PB1S-11ML/y |
PB1S-AACX/r |
PB1S-22XS6/k |
|
PB1S-AATD/w |
PB1S-22/g |
PB1S-20XS6/kffu-EP |
PB1S-11M/k-60 |
PB1S-20/y |
|
PB1S-20CX/k |
PB1S-22CX/k |
PB1S-20CXS6D/g23ffu |
PB1S-AAT/g |
PB1S-AAXS6/kffu |
|
PB1S-AAY/R |
PB1S-22CX/r |
PB1S-20XS6D/w23ffu |
PB1S-AAYS6/Cffu |
PB1S-10D/g23 |
|
PB1S-02ZRA/r |
PB1S-22CX/g |
PB1S-22Y/L |
PB1S-AAXS6/kf |
PB1S-11/r |
|
PB1S-10TD/w31 |
PB1S-22CX/y |
PB1S-22/k |
PB1S-10/y |
PB1S-10D/y23 |
|
PB1S-22CXS6/k |
PB1S-11D/b23 |
PB1S-20/r |
PB1S-11D/w23 |
PB1S-11X/k |
