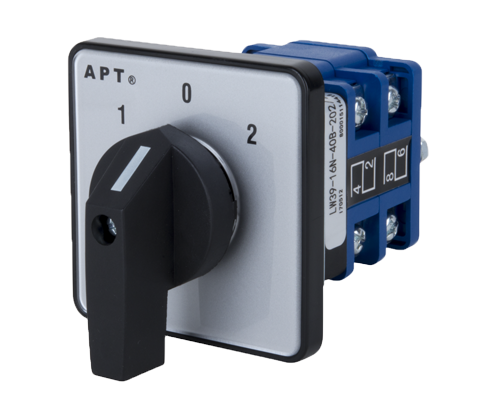

APT/西門子LW39-16N轉換開關介紹
LW39-16N系列萬轉是本公司為繼保行業傾心研發的一大系列產品，其造型多樣美觀、規格系列豐富、節點功能強大，采用內置接線方式，接線更加可靠。
操作角度30°、45°、90°
觸頭系統大節數12節
觸點系統采用滾動軸承，動作手感柔和，并且有效提高機械壽命
APT/西門子LW39-16N轉換開關參數
額定絕緣電壓Ui：690V
約定發熱電流Ith：16A
工頻耐壓：2500V, 1min
交流電壽命：20萬次
直流電壽命：10萬次
機械壽命：30萬次
交流工作電流：AC-15:220V/12A 380V/8A
AC-3:380V/12A
AC-4:380V/10A
AC-21:380V/16A
AC-22:380V/16A
直流工作電流：DC-13:110V/2.5A 220V/1.25A
頭部防護等級：IP40
海拔高度不超過2000米
環境溫度-25℃～+55℃
空氣相對濕度不超過90%
安裝類別為Ⅲ
污染等級為3級
APT/西門子LW39-16N轉換開關型號一覽
|
型號 |
型號 |
型號 |
型號 |
|
LW39-16NZ-DC220V燈箱 |
LW39-16NS-9AC-42X/3 |
LW39-16NXTFD-Z/5P |
LW39-16NTF-X/2 |
|
LW39-16NS-X/11P |
LW39-16NS-B2-202AX/2P |
LW39-16NS-X/4-G |
LW39-16NXTFD-X/2 |
|
LW39-16NXTF-ZA-52425/6 |
LW39-16NS-4OB-222X/3 |
LW39-16NSD-B2-202A/2-gr26 |
LW39-16NXTF-X/2 |
|
LW39-16NX-4AB-02/1 |
LW39-16NS-9OB-44AX/4 |
LW39-16NS-Z/4.4.4.4/4 |
LW39-16NSDY-X/2 |
|
LW39-16NX-9GA-0C/6 |
LW39-16NS-4AO-1*8X/4P |
LW39-16NS-4OB-404/4 |
LW39-16NSD-X/2 |
|
LW39-16NSD-Z/2P |
LW39-16NS-9GC-222X/3 |
LW39-16NS-4OB-444X/6P |
LW39-16NS-X/2 |
|
LW39-16N-X/3 |
LW39-16NS-4OB-202X/2 |
LW39-16NS-4OB-606/6 |
LW39-16NTFD-X/2 |
|
LW39-16NSY-X/6P |
LW39-16NS-4GC-22026X/3 |
LW39-16NS-4OB-808/8 |
LW39-16NP2-X/3 |
|
LW39-16NS-X/11 |
LW39-16NS-9AC-22DX/2P |
LW39-16NS-9OB-19X/5P |
LW39-16NP2-Z/3 |
|
LW39-16NP-X/2P |
LW39-16NS-ZA-30203X/4P |
LW39-16NXY-Z/5 |
LW39-16NS-X/10P-ZC |
|
LW39-16NP-X/3P |
LW39-16NS-4OB-121X/2 |
LW39-16NXY-X/7P |
LW39-16NS-X/9P-ZC |
|
LW39-16NS-X/4 |
LW39-16NS-ZA-20202X/3P |
LW39-16NX-Z/6P |
LW39-16NS-X/5P-ZC |
|
LW39-16N-X/2-GR |
LW39-16NS-ZA-20202X/5P |
LW39-16NYS-X/12P |
LW39-16NS-Z/3P-ZC |
|
LW39-16NS-Z/1 |
LW39-16NS-3OB-505X/5P |
LW39-16NYS-X/8P |
LW39-16ND-Z/2P |
|
LW39-16NS-X/4P |
LW39-16NS-3OB-101/1P |
LW39-16NX-Z/4P |
LW39-16NS-X/2P-ZC |
|
LW39-16NS-Z/4P |
LW39-16NS-X/3 |
LW39-16NS-Z/3P |
LW39-16NSD-Z/5P |
|
LW39-16NS-X/10P |
LW39-16N-Z/1a.4.20/4 |
LW39-16NS-Z/6P |
LW39-16NSY-X/5 |
|
LW39-16N-Z/2 |
LW39-16NS-X/2P |
LW39-16N-X/6 |
LW39-16NSD-Z/3P |
|
LW39-16NS刻字面板 |
LW39-16N-4OB-808X/8P |
LW39-16N-X/1P |
LW39-16NXTFD-Z/6 |
|
LW39-16NX-4OC-201D/8 |
LW39-16N-6OB-02/1-BK |
LW39-16NLF-Z/1 |
LW39-16NS-X/7P |
|
LW39-16NX-9GA-OC/6 |
LW39-16NSY-X/7 |
LW39-16NX-Z/1P |
LW39-16NXDY-Z/2 |
|
LW39-16NX-9GA-0I/9 |
LW39-16NS-X/8 |
LW39-16NX-X/1P |
LW39-16N-X/1-GR |
|
LW39-16NSY-Z/4P |
LW39-16NS-Z/2 |
LW39-16NX-X/5P |
LW39-16NS-X/4P-XW |
|
LW39-16N-Z/5P |
LW39-16NS-X/7 |
LW39-16NX-X/2P |
LW39-16NP2-Z/2 |
|
LW39-16NS-Z/5 |
LW39-16N-X/6P |
LW39-16NX-X/7P |
LW39-16N-X/1-FK |
|
LW39-16NS-9AG-1131X/2 |
LW39-16NXDY-Z/2P |
LW39-16NXY-X/6P |
LW39-16N-Z/2-FK |
|
LW39-16NSD-Z/2 |
LW39-16NXD-Z/5P |
LW39-16N-X/1 |
LW39-16NXY-X/8P |
|
LW39-16NXD-x/2P |
LW39-16NS-Z/3 |
LW39-16NS-X/8P |
LW39-16N-Z/1-FK |
|
LW39-16NXDY-X/1 |
LW39-16NS-Z/4 |
LW39-16NSY-Z/3P |
LW39-16N-X/3P-FK |
|
LW39-16NXD-X/1 |
LW39-16NS-X/6P |
LW39-16NSY-4OB-101/1 |
LW39-16N-X/2P-FK |
|
LW39-16NX-Z/2 |
LW39-16NS-X/5P |
LW39-16NS-4OB-101/1 |
LW39-16NSY-X/4P |
|
LW39-16NS-X/5 |
LW39-16N-X/7P |
LW39-16NSY-4OB-202/2 |
LW39-16NXY-Z/1 |
|
LW39-16NXD-Z/2P-GR28 |
LW39-16N-X/3P |
LW39-16NS-4OB-202/2 |
LW39-16NXY-X/8 |
|
LW39-16N-X/4 |
LW39-16N-Z/2P |
LW39-16N-4OB-303/3 |
LW39-16NS-X/1 |
|
LW39-16NS-X/3P |
LW39-16N-X/4P |
LW39-16N-B2-121/2 |
LW39-16NTFD-Z/3P |
|
LW39-16NS-X/1P |
LW39-16N-X/2P |
LW39-16N-4OB-7A7/12 |
LW39-16NX-X/9P |
|
LW39-16NYM-X/1P |
LW39-16N-Z/1P |
LW39-16ND-X/2 |
LW39-16NS-Z/1P |
|
LW39-16NXDY-Z/1P-TH |
LW39-16NS-Z/49.4610/5 |
LW39-16NS-Z/8 |
LW39-16NX-X/8P |
|
LW39-16NP-X/8P |
LW39-16NS-Z/2P |
LW39-16N-X/2 |
LW39-16NS-X/4-XW |
|
LW39-16NP-Z/2P-FK |
LW39-16NXDY-Z/5P |
LW39-16NXY-X/2 |
LW39-16N-Z/3P |
|
LW39-16NX-Z/3P |
LW39-16NS-X/6 |
LW39-16NSY-X/2 |
LW39-16NSY-X/2P |
|
LW39-16NP-X/1P |
LW39-16N-X/8 |
LW39-16NP-X/2 |
LW39-16NS-X/9 |
|
LW39-16NP-X/4P |
LW39-16NSY-Z/2 |
LW39-16NYM-X/2 |
LW39-16NXD-Z/1P |
|
LW39-16NP-X/4 |
LW39-16NXY-X/4 |
LW39-16NP2-X/2 |
LW39-16NSY-X/5P |
|
LW39-16NXDY-Z/1P |
LW39-16NX-X/8 |
LW39-16NXDY-X/2 |
LW39-16NYS-Z/5P |
|
LW39-16NXD-ZA-30203X/4P-gr26 |
LW39-16NP-X/5P |
LW39-16NXD-X/2 |
LW39-16NSY-Z/5P |
|
LW39-16NS-X/3-TH |
LW39-16NXDY-Z/2P-TH |
LW39-16NX-X/2 |
LW39-16NXDY-Z/3P |
|
LW39-16NXD-ZA-30203X/4P-gr28 |
LW39-16NYS-X/3P |
LW39-16NYS-X/2 |
LW39-16NYM-Z/2P |
|
LW39-16NS-X/3P-TH |
LW39-16NXTFD-Z/5 |
LW39-16NP3-X/2 |
