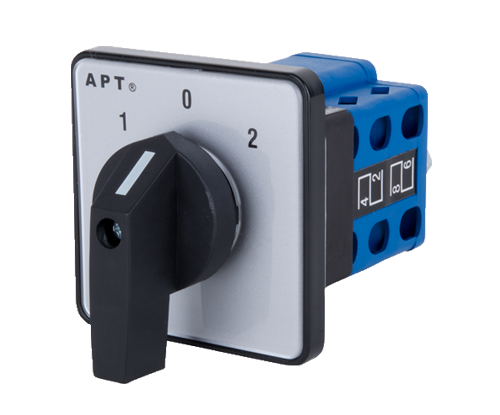

APT/西門子LW39-25轉換開關介紹
LW39-25萬轉適用于更大容量的使用場合，尤其適用于直流應用環境。完全自主開發的新產品，擁有多項設計專利。采用國際流行內置接線方式，可靠。內部采用滾動軸承，動作手感柔和，機械壽命長。
約定發熱電流25A，直流分?jǐn)嗄芰_(dá)到5A/110V（DC21）
操作角度30°、45°、90°
功能特征豐富、觸頭系統大節數12節
APT/西門子LW39-25轉換開關參數
額定絕緣電壓Ui：690V
約定發熱電流Ith：25A
工頻耐壓：2500V, 1min
交流電壽命：20萬次
直流電壽命：10萬次
機械壽命：30萬次
交流工作電流：AC-15:220V/12A 380V/8A
AC-3:380V/12A
AC-4:380V/10A
AC-21:380V/25A
AC-22:380V/25A
直流工作電流：DC-13:110V/2.5A 220V/1.25A
頭部防護等級：IP40
海拔高度不超過2000米
環境溫度-25℃～+55℃
空氣相對濕度不超過90%
安裝類別為Ⅲ
污染等級為3級
APT/西門子LW39-25轉換開關參數
額定絕緣電壓Ui：690V
約定發熱電流Ith：25A
工頻耐壓：2500V, 1min
交流電壽命：20萬次
直流電壽命：10萬次
機械壽命：30萬次
交流工作電流：AC-15:220V/12A 380V/8A
AC-3:380V/12A
AC-4:380V/10A
AC-21:380V/25A
AC-22:380V/25A
直流工作電流：DC-13:110V/2.5A 220V/1.25A
頭部防護等級：IP40
海拔高度不超過2000米
環境溫度-25℃～+55℃
空氣相對濕度不超過90%
安裝類別為Ⅲ
污染等級為3級
APT/西門子LW39-25轉換開關型號一覽
|
型號;
|
型號
|
型號
|
型號
|
|
LW39-25-4OC-0111/2
|
LW39-25-3JG-3x10JX/6Ck
|
LW39-25-9OB-13X/2
|
LW39-25YS-Z/10P
|
|
LW39-25YH3/3
|
LW39-25-3JG-3xAJ/6
|
LW39-25-9OB-33/3
|
LW39-25YM-Z/9P
|
|
LW39-25-9AC-22/2
|
LW39-25-3JG-3xAJ/6P
|
LW39-25-9OB-33/3P
|
LW39-25LF-Z/2P
|
|
LW39-25YS-9OB-11/1
|
LW39-25-3JG-3xAJX/6
|
LW39-25-9OB-33X/3
|
LW39-25DM-X/5P
|
|
LW39-25-9GA-02/1
|
LW39-25-4AB-02/1Gr
|
LW39-25DM-4OB-101/1gg23
|
LW39-25LF-X/3P
|
|
LW39-25YS-9OB-55/5
|
LW39-25-4AB-08/4Gr
|
LW39-25DM-4OB-101/1gg23P
|
LW39-25LC-X/5P
|
|
LW39-25-4OB-202/2
|
LW39-25-4AB-08X/4Gr
|
LW39-25DM-4OB-101X/1gg23
|
LW39-25M-X/3P
|
|
LW39-25-9OB-11/1
|
LW39-25-4GE-01x6J/3
|
LW39-25DM-4OB-121/2gg23
|
LW39-25YM-X/9P
|
|
LW39-25-40B-222/3P-TH
|
LW39-25-4GE-01x6J/3P
|
LW39-25DM-4OB-121/2gg23P
|
LW39-25TC-X/4P
|
|
LW39-25-9GA-22A/2
|
LW39-25-4GE-01x6JX/3
|
LW39-25DM-4OB-121X/2gg23
|
LW39-25YS-Z/7P
|
|
LW39-25-4OB-202D/2
|
LW39-25-4OB-011/1
|
LW39-25DM-B2-202/2gr31
|
LW39-25YM-X/1P
|
|
LW39-25-9OB-44/4
|
LW39-25-4OB-011/1P
|
LW39-25DM-B2-202/2gr31P
|
LW39-25P-X/4P
|
|
LW39-25-9GC-202/2
|
LW39-25-4OB-011X/1
|
LW39-25DM-B2-202X/2gr31
|
LW39-25LF-Z/5P
|
|
LW39-25-9AC-222/3
|
LW39-25-4OB-202B/2Br
|
LW39-25-S5.5/4
|
LW39-25P-X/7P
|
|
LW39-25-9OB-02/1
|
LW39-25-4OB-202B/2BrP
|
LW39-25-S5.5/4P
|
LW39-25TC-X/7P
|
|
LW39-25-4OB-101/1
|
LW39-25-4OB-202BX/2Br
|
LW39-25YM-ZA-53335/5Bk
|
LW39-25DM-Z/8P
|
|
LW39-25-9OB-22/2
|
LW39-25-4OB-303/3
|
LW39-25YM-ZA53335/5BkP
|
LW39-25LF-Z/6P
|
|
LW39-25-4OB-202A/2
|
LW39-25-4OB-303/3P
|
LW39-25YM-ZA53335X/5Bk
|
LW39-25P-Z/7P
|
|
LW39-25-9OB-55/5
|
LW39-25-4OB-303J/3Bk
|
LW39-25YS-9OB-33/3
|
LW39-25TC-Z/7P
|
|
LW39-25-4OB-404/4
|
LW39-25-4OB-303J/3BkP
|
LW39-25YS-9OB-33/3P
|
LW39-25M-Z/6P
|
|
LW39-25-9AC-03/2-GR
|
LW39-25-4OB-303JX/3Bk
|
LW39-25YS-9OB-33X/3
|
LW39-25M-X/7P
|
|
LW39-25YS-4OB-434/4
|
LW39-25-4OB-303X/3
|
LW39-25YS-B2-202/2
|
LW39-25-X/12P
|
|
LW39-25-4GC-11111/3
|
LW39-25-4OB-323/4
|
LW39-25YS-B2-202/2P
|
LW39-25YS-X/11P
|
|
LW39-25YS-B2-202A/2
|
LW39-25-4OB-323/4P
|
LW39-25YS-B2-202X/2
|
LW39-25M-Z/3P
|
|
LW39-25-4OB-202C/2
|
LW39-25-4OB-323X/4
|
LW39-25YS-Z/4.4/2
|
LW39-25YM-Z/1P
|
|
LW39-25-9OB-22A/2
|
LW39-25-4OC-0234J/2Dk
|
LW39-25YS-Z/4.4/2P
|
LW39-25P-Z/4P
|
|
LW39-25YS-9OB-22/2
|
LW39-25-4OC-0234J/2DkP
|
LW39-25-Z1-2002/2
|
LW39-25TC-Z/4P
|
|
LW39-25YS-9OB-77/7
|
LW39-25-4OC-0234JX/2Dk
|
LW39-25-Z1-2002/2P
|
LW39-25TF-X/5P
|
|
LW39-25-4OB-505/5
|
LW39-25-4OC-1111/2
|
LW39-25-Z1-2002X/2
|
LW39-25P-X/8P
|
|
LW39-25-9GA-04/2
|
LW39-25-4OC-1111/2P
|
LW39-25-ZG-202A/2
|
LW39-25LC-Z/5P
|
|
LW39-25-4AB-04/2
|
LW39-25-4OC-1111X/2
|
LW39-25-ZG-202A/2P
|
LW39-25-Z/6P
|
|
LW39-25-9GC-101/1
|
LW39-25-4OC-3101/3
|
LW39-25-ZG-202AX/2
|
LW39-25DM-X/6P
|
|
LW39-25-4GC-42024/2
|
LW39-25-4OC-3101/3P
|
LW39-25-4OB-211X/2
|
LW39-25LC-X/6P
|
|
LW39-25-Z1-2002X/2-AK
|
LW39-25-4OC-3101X/3
|
LW39-25DM-B2-202/2-gr28
|
LW39-25M-X/4P
|
|
LW39-25-9GC-222/3
|
LW39-25-9AC-02/1Gr
|
LW39-25YM-4FD-2220222/7
|
LW39-25TF-X/8P
|
|
LW39-25-9OB-04/2
|
LW39-25-9AC-04/2Gr
|
LW39-25YS-9GC-334/5-TH
|
LW39-25YM-X/10P
|
|
LW39-25-4OB-101A/1
|
LW39-25-9AC-22A/2Bk
|
LW39-25DM-B2-202/2-gr28A25
|
LW39-25DM-X/9P
|
|
LW39-25-9GA-22/2
|
LW39-25-9AC-22A/2BkP
|
LW39-25YS-4AB-44/4-TH
|
LW39-25-Z/3P
|
|
LW39-25-4AB-04/2Gr
|
LW39-25-9AC-22AX/2Bk
|
LW39-25-4AB-22/2TH
|
LW39-25YS-Z/2P
|
|
LW39-25YS-B2-101/1
|
LW39-25-9AC-33J/3Ck
|
LW39-25-4OB-112X/2
|
LW39-25P-X/5P
|
|
LW39-25-9GC-111/2
|
LW39-25-9AC-33J/3CkP
|
LW39-25-4OB-303A/3P-TH
|
LW39-25TC-Z/1P
|
|
LW39-25-9OB-66/6
|
LW39-25-9AC-33JX/3Ck
|
LW39-25-4AC-011/1-TH
|
LW39-25TC-X/5P
|
|
LW39-25-4GD-1X6B/3
|
LW39-25-9GA-11/1
|
LW39-25YS-Z/1a.4.6a/4-TH
|
LW39-25LC-X/3P
|
|
LW39-25-9GC-404/4
|
LW39-25-9GA-11/1P
|
LW39-25-4OB-201X/2
|
LW39-25YS-X/5P
|
|
LW39-25-9AC-11/1
|
LW39-25-9GA-11X/1
|
LW39-25-9GA-33/3P-TH
|
LW39-25LF-X/1P
|
|
LW39-25YS-4OC-1012/2
|
LW39-25-9GC-303/3
|
LW39-25-4AB-02/1-TH
|
LW39-25-Z/9P
|
|
LW39-25-9AC-33/3
|
LW39-25-9GC-303/3P
|
LW39-25-Z/1a.4.6a/4-TH
|
LW39-25M-X/1P
|
|
LW39-25YS-9OB-22A/2
|
LW39-25-9GC-303X/3
|
LW39-25YS-4AB-44B/4-TH
|
LW39-25DM-X/3P
|
|
LW39-25-3JG-3x10J/6Ck
|
LW39-25-9OB-13/2
|
LW39-25-4OB-222/3-TH
|
LW39-25YS-Z/5P
|
|
LW39-25-3JG-3x10J/6CkP
|
LW39-25-9OB-13/2P
|
LW39-25-Z/11P
|
LW39-25YM-X/7P
|
